Towbars Toyota HiAce
| Find Toyota HiAce roof racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |

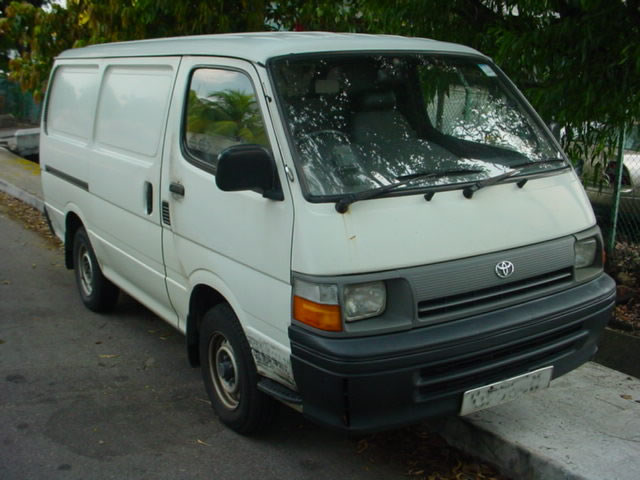

| 11/1998-3/2005 | HiAce Panel Van |  |
Tongue | 1241 | 1000/80 |  |
|
|
TLP | 1162 | 1000/80 |  |
Includes protector bars | ||
|
HLPS | 1393R | 1400/120 |  |
Includes protector bars and step | ||

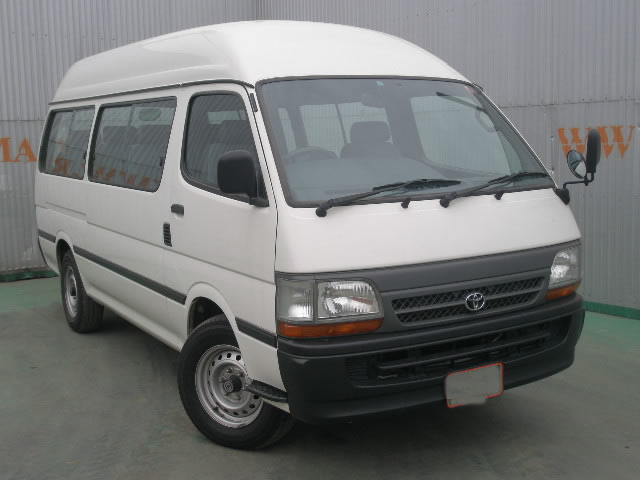

| 11/1989-3/2005 | Commuter Bus | |
Tongue | 1788 | 1000/80 |  |
|
|
TLP | 1789 | 1000/80 |  |
Includes protector bars | ||
| Note 2005 onwards: Access is required to inside LH & RH inner panels at the back of load area, if you have an internal fitout we need to see the vehicle before booking. | |||||||
| 4/2005-05/2019 | HiAce van LWB (Not SLWB) Not LPG | |
Tongue | 3069W | 1000/100 | |
 |
|
Hitch | 3067RW | 1400/140 |  |
|||
|
additional 'Telstra' step for 3067RW | 8363+8360 | na |  |
 |
||
| 4/2005-05/2019 | HiAce van with LPG | |
2088W towbar available but must be fitted by LPG licenced fitter. | ||||
| 06/2019 on | HiAce Gen6 | |
Hitch | 3305RW | 1900/190 |  |
Includes #4837 ECU |
|
Corner protectors | 08387 |  |
Attach to 3305RW tow bar | |||
| Super Long Wheel Base HiAce: details here | |||||||
| Short Bonnet Van (SBV) & Walkthro: details here | |||||||
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Standard (Tongue) towbars
The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
Hitch Receiver towbars
The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available for the Toyota Hiace with 50mm square receiver sockets. This allows for quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
Protector bar towbars
On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

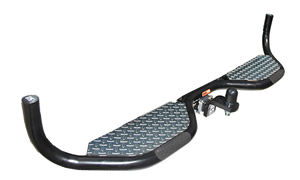

HLPS: Hitch bar, lamp protectors and step.
TLP: Standard bar with lamp protectors.
Gallery Hi-Ace towbars

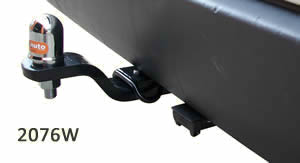

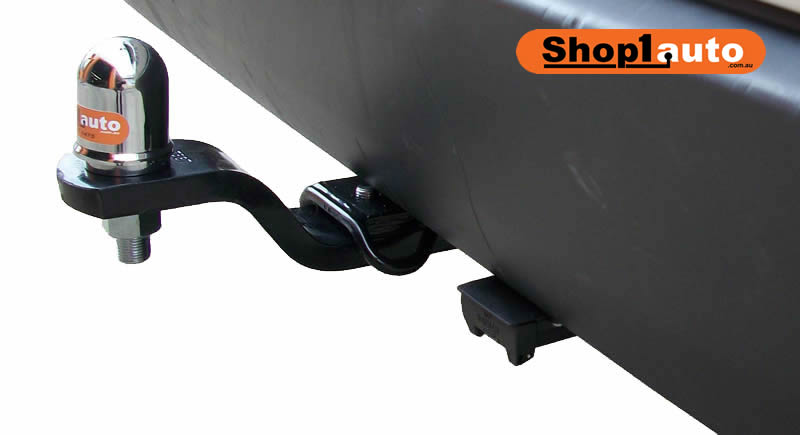

Light duty towbar Toyota HiAce 2005 on

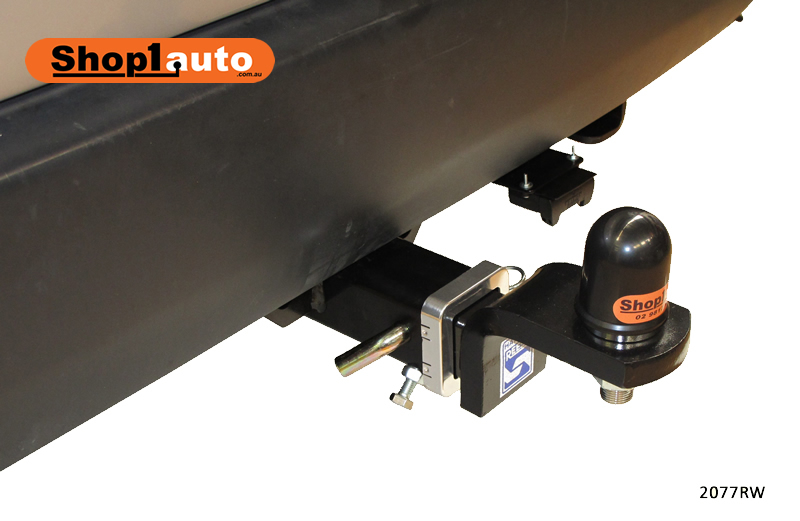

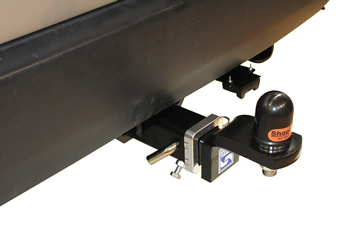

Hitch bar 2005 on HiAce

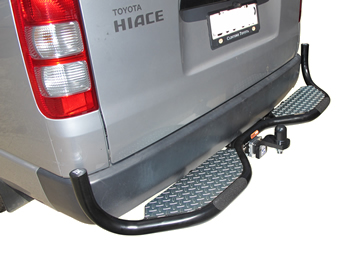

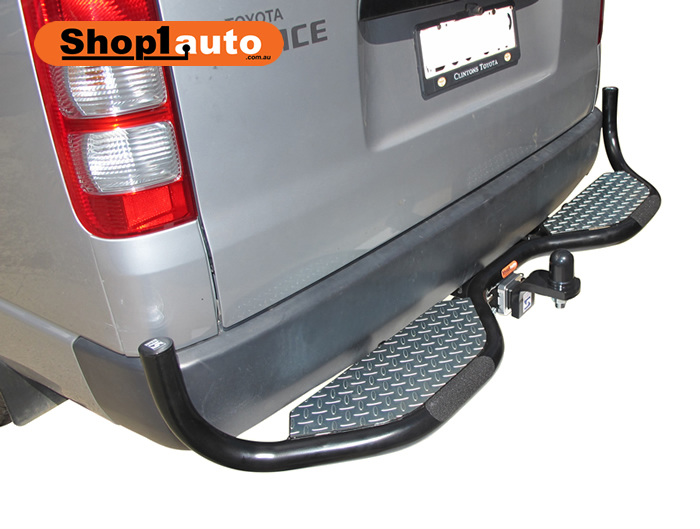

3067RW plus optional hitch step.
