Towbars Isuzu D-Max
| Find Isuzu D-Max roof racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |
| 10/2008-06/2012 | Cab Chassis & Tub body (no rear bumper) |  |
Tongue | 2539W | 1250/90 |  |
|
|
Hitch | 2373RW | 3000/300 |  |
2WD 2500kg rating |
||
|

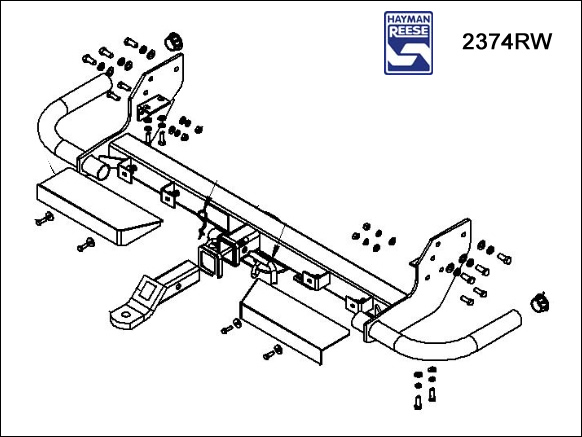

HLPS | 2374RW | 3000/300 |  |
 includes protection bars and step plates |
||
| 10/2008-06/2012 | Tub body with rear bumper | |
Hitch | 2372RW | 3000/300 |  |
 2WD 2500kg rating |
| 06/2012-07/2020 | Cab Chassis | |
Hitch | 2942RW | 3500/350 | |
 |
 |
3242RW | 3500/350 |  |
|
|||
| 06/2012-07/2020 | Tub body with rear bumper | |
Hitch | 2941RW | 3500/350 |  |
|
|
3299XW | 3500/350 |  |
|
|||
| 06/2012-07/2020 | Tub body without rear bumper | |
Hitch | 2942RW | 3500/350 | |
|
|
3299XW | 3500/350 | |
|
|||
| 07/2020 | Tub body (and cab-chassis that retain the bumper/step) | |
Hitch | 3348RW | 3500/35 |  |
 includes #4835 ECU, #4943 tail. |
|
3364XW | 3500/350 |  |
includes #4835 ECU, #4943 tail. | |||
| 07/2020-onward | Cab Chassis (with bumper discarded during fit) | |
Hitch | 3420RW | 3500/35 |  |
Includes #4835 ECU, #4943 tail #08409 sensor brackets |
|
3365XW | 3500/350 |  |
Includes #4835 ECU, #4943 tail #08409 sensor relocation brackets |
|||
| 07/2020 | Models with prefitted towbar, includes wiring kit, ecu and towball mount | |
Hitch | 3427RW | 3500/350 | |
includes #4835ECU, #4943 tail |
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Standard (Tongue) towbars
The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
Hitch Receiver towbars
The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
X-Bar towbars
The Hayman Reese X-BAR for the Isuzu D-Max is built tough for off-road action. Forged steel recovery points and heavy duty side arms give extremely strong anchor points for pulling a vehicle out of the bog. Improved depature angles and protection for electrical sockets makes the X-BAR the best choice for off-road use.
Gallery Isuzu D-Max towbars

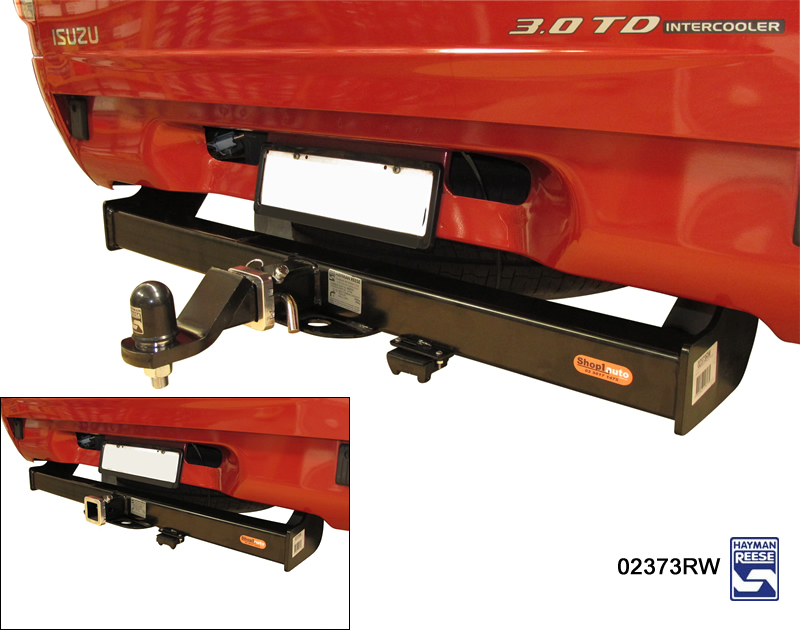

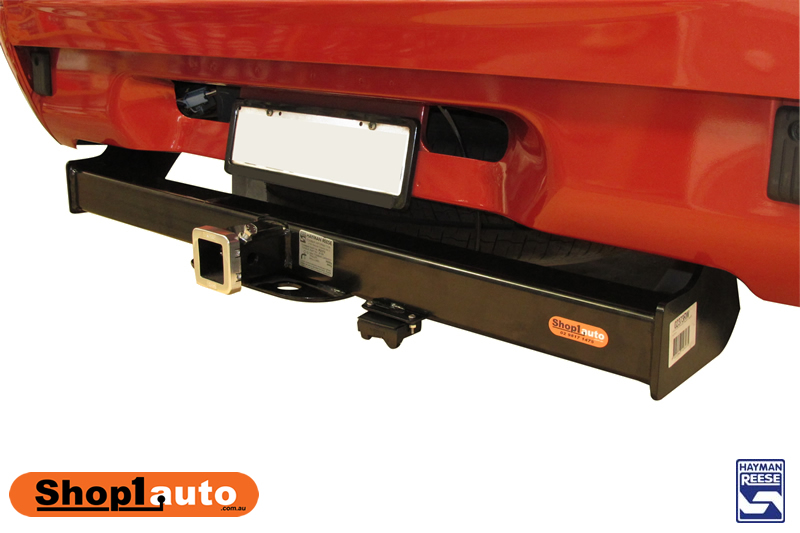

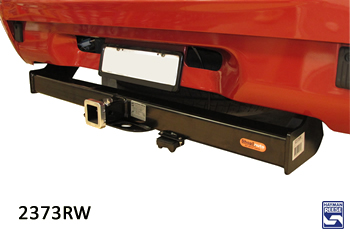

2373RW fitted to D-max tub body (no bumper)

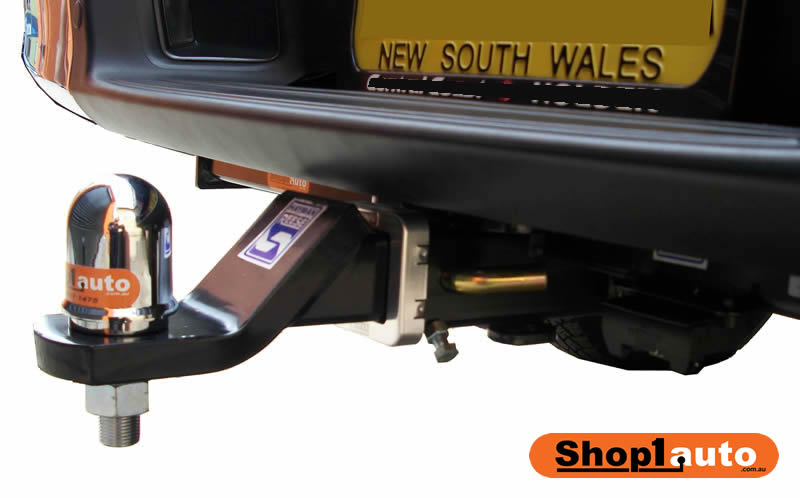

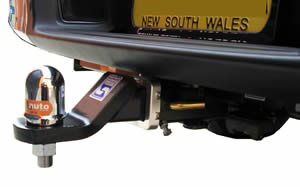

Isuzu D-Max towbar, Hayman Reese 2372RW

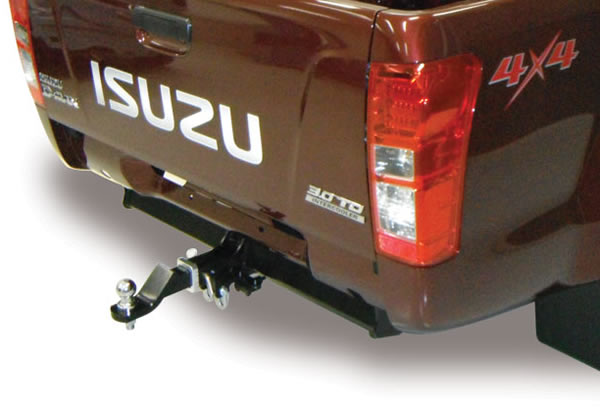

2942RW towbar

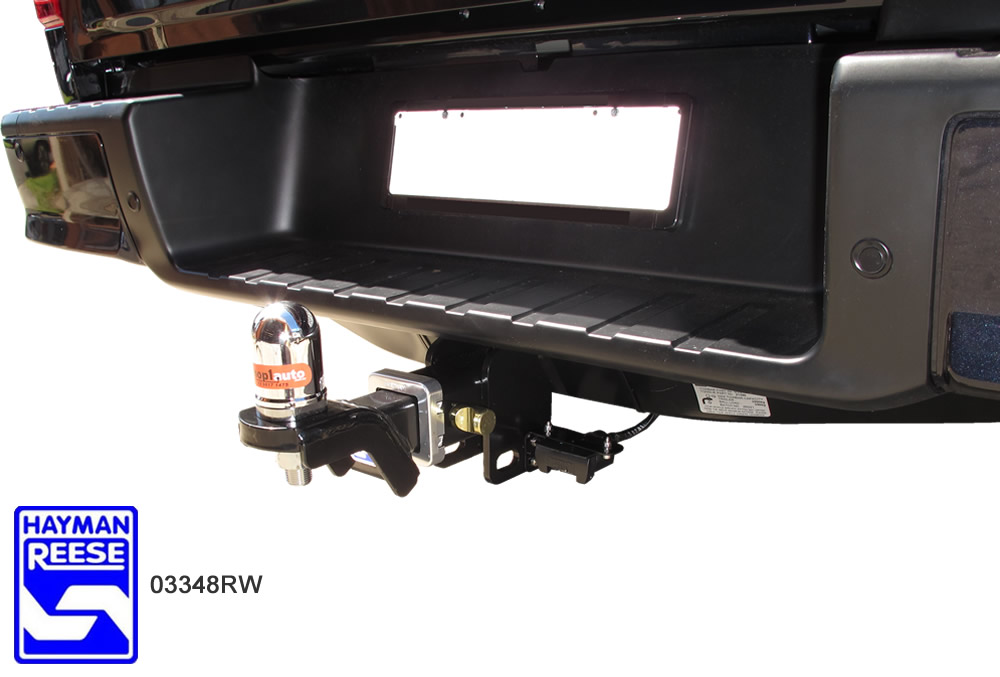

3348RW towbar
