Towbars Ford Transit
| Find Ford Transit roof racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |

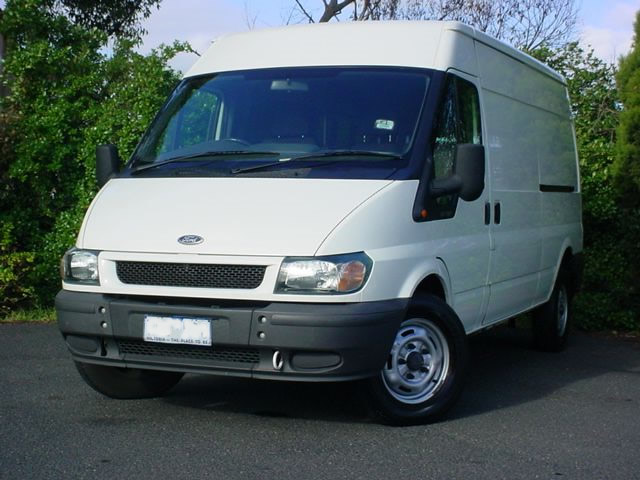

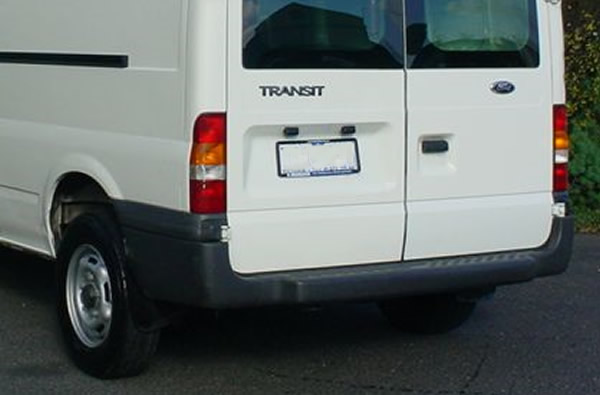

| 1/2001-08/2014 | Transit Van (up to VM model not VO) |
 |

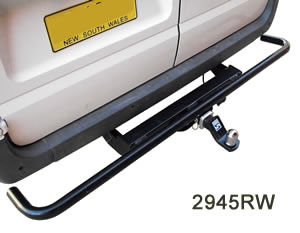

HLP | 2945RW | 2800/280 |  |
|
| Note 2014 onwards: Access is required to inside LH & RH inner panels at the back of load area, if you have an internal fitout we need to see the vehicle before booking. | |||||||

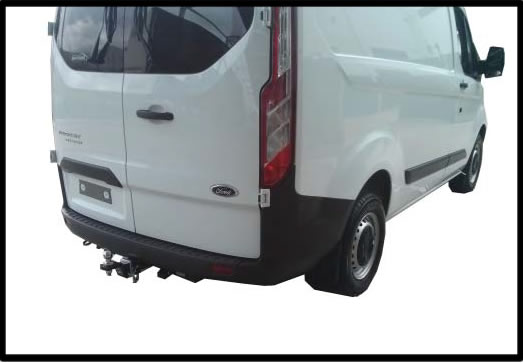

| 02/2014-058/2019 | Transit Custom (VN) SWB/LWB | |
Hitch | 3151RW | 2800/280 | |
|
|

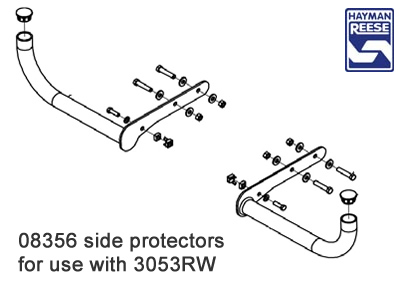

Protector 8356 |  |
Additional vehicle corner protection. | ||||
| 09/2014 on | Transit Van VO | |
Hitch | 3108RW | 3500/300 | |
Includes #4826ECU electronic protection |

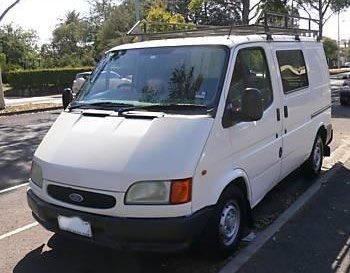

| 3/1994-12/2000 | Transit Cab-Chassis (VE-VG) | |
Hitch | 1542R | 2000/200 | |
Made-to-order bar please call to check availability |
| 1/2001-1/2014 | Transit Cab Chassis (VH-VJ) | |
Hitch | 1845RW | 2750/250 |  |
Includes 4826ECU electronic control box |
| 09/2014 on | Transit VO Cab Chassis | |
Hitch | 3109RW | 3500/300 | |
Includes 4835ECU electronic control box |
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Hitch Receiver towbars
The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
Protector bar towbars
On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

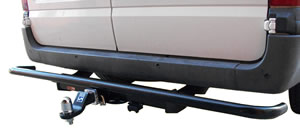

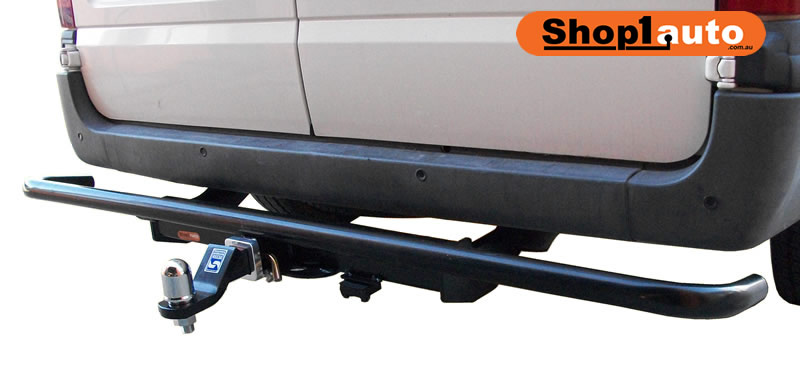

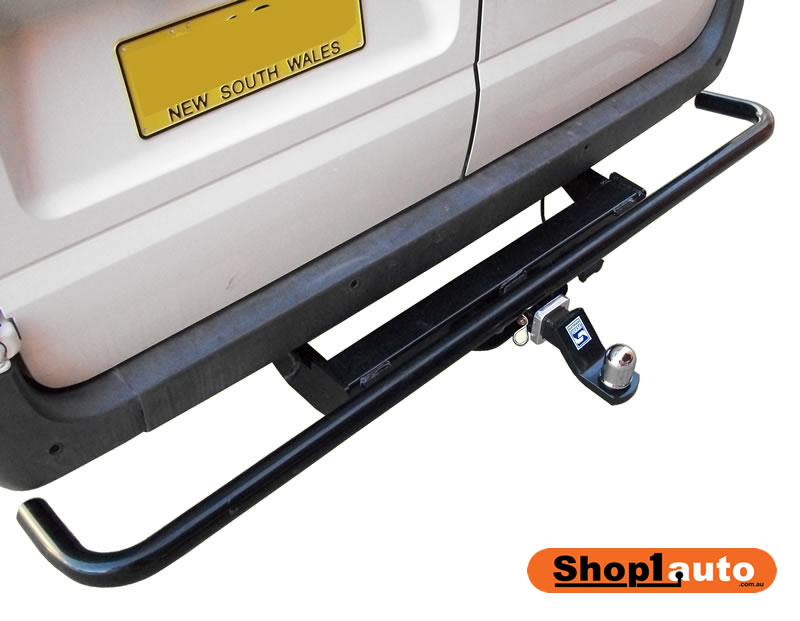

HLP: Hitch bar with lamp protectors
HLPS: Hitch bar, lamp protectors and step.
TLP: Standard bar with lamp protectors.
TLPS: Standard bar with lamp protectors and step.
