Towbars B-Class Mercedes
| Find Mercedes B-Class Roof Racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |
| 03/2012-03/2019 | Mercedes B-Class (W246) |  |
Tongue | 2971W | 1500/75 |
 |
 Includes #4831 ECU protection unit. |
|
Hidden release tongue | 2970RW | 1500/75 |  |
 Includes #4831 ECU protection unit. |
||

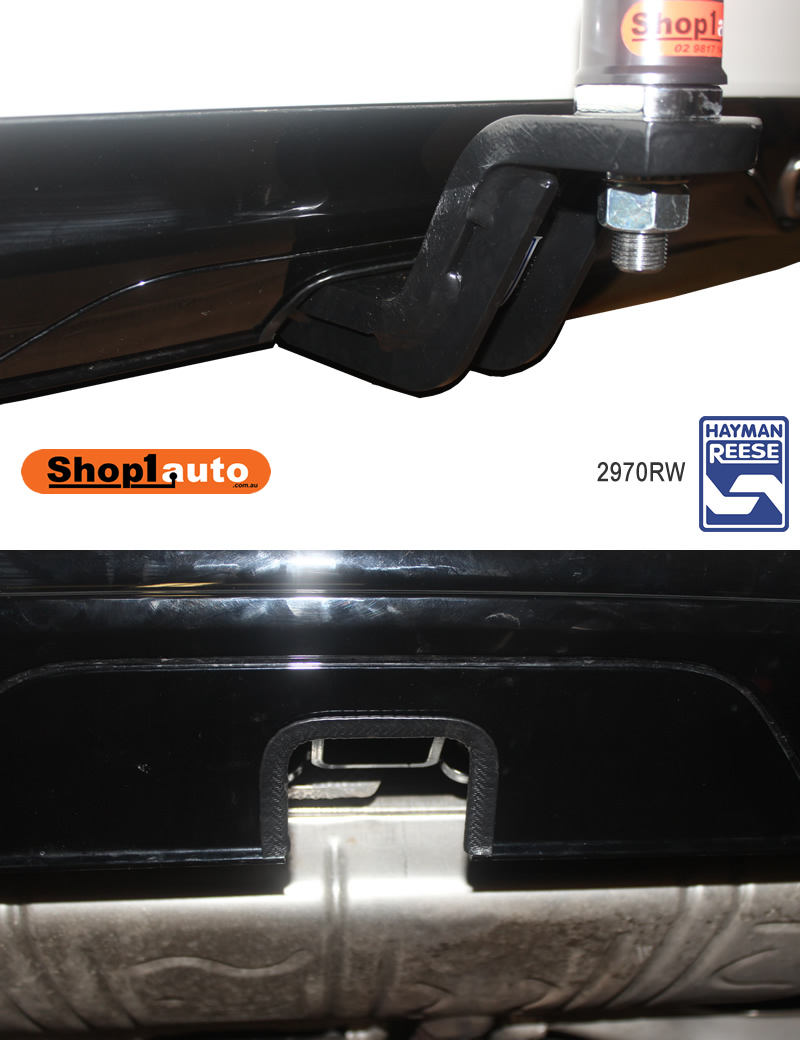

Sports bumper requires small cut and hitch-pin hard to access:  |
|||||||
| 2019 on | Mercedes B-Class (247) | |
Awaiting advice on fitment of this vehicle. | ||||
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Standard (Tongue) towbars
The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
Hidden release (Tongue) towbars
The hidden release tongue bar looks like a conventional standard towbar but it has a hidden release shaft and pin attachment hidden behind the bumper. When the tongue is removed the rest of the tow bar is completely hidden behind the bumper.
Gallery Mercedes B-Class Tow bars

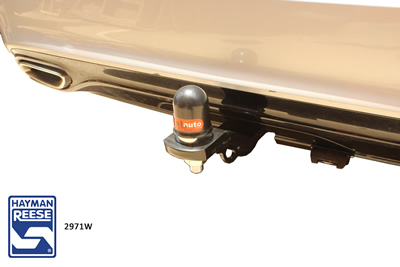

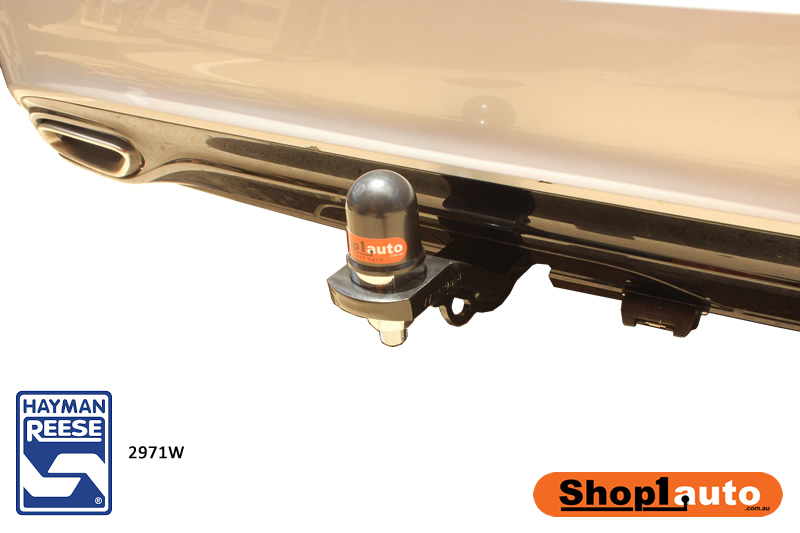

2971W tongue bar

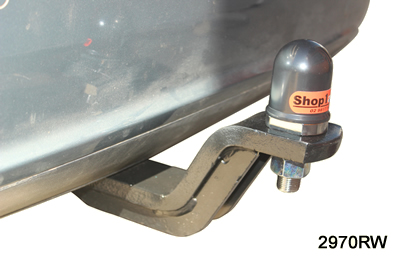

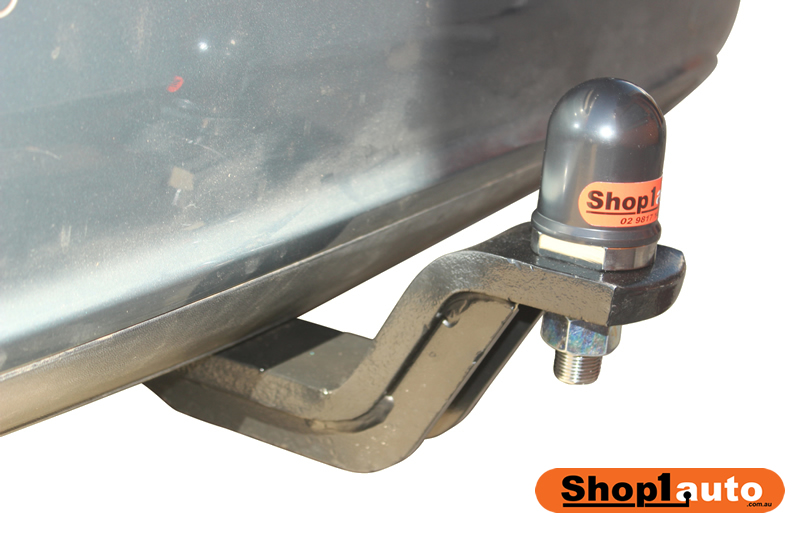

Hayman Reese hidden release towbar.
