Towbars Toyota Landcruiser

Date Vehicle description Make Type Part # Rating kg Fitted $ Comments

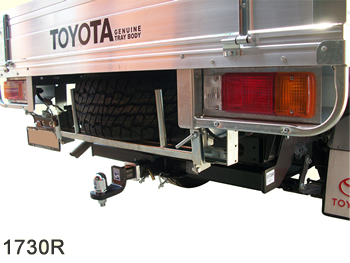

1/1985-12/1999 Landcruiser 75/78/79 Cab-chassis Tiny Hayman Reese logo Hitch 1730RW 2500/250 HL

8/96 on rating 3500/350 Link to Landcruiser towbar image

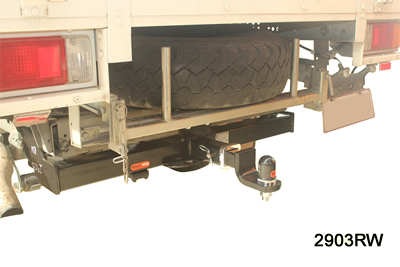

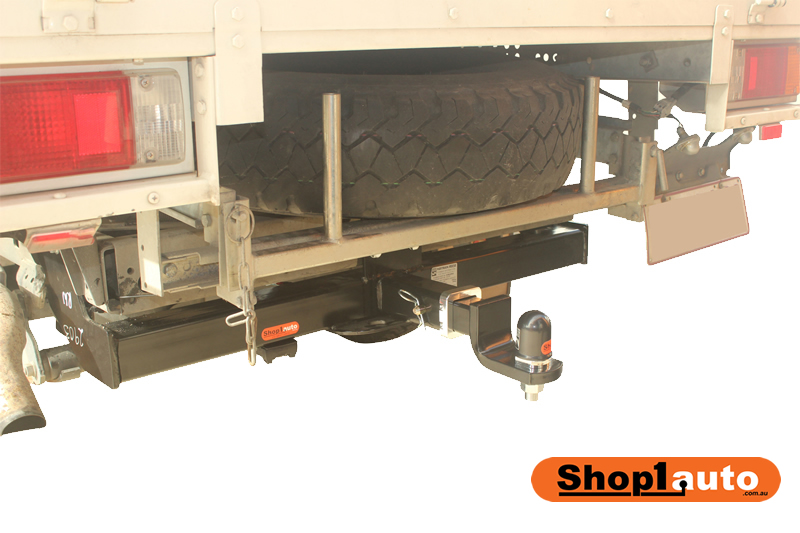

01/2000-10/2016 Lancruiser 70-Series Cab-Chassis Tiny Hayman Reese logo Hitch 2903RW 3500/350 HL Link to Landcruiser towbar image
08/2012 on Landcruiser 70 Series 2dr/4dr cab chassis Tiny Hayman Reese logo Hitch 3186RW 3500/350 Price tag hk
3237RW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

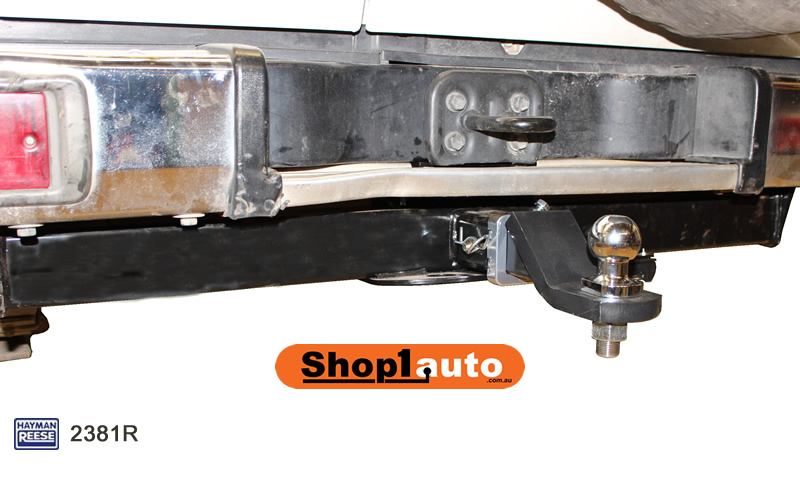

3/2007 on Landcruiser 76 Series GXL & Workmate 4dr Wagon Tiny Hayman Reese logo Hitch 2381R 3500/350 HP Link to Landcruiser towbar image Factory rear step removed to allow fitting

08/1991-08/2020 Landcruiser 75/78 Series 2dr Troop Carrier Tiny Hayman Reese logo Hitch 1742R 3500/350 HL
08/2020 on Landcruiser 78 Series 2D Troop Carrier Tiny Hayman Reese logo Hitch 3456RW 3500/350 HP

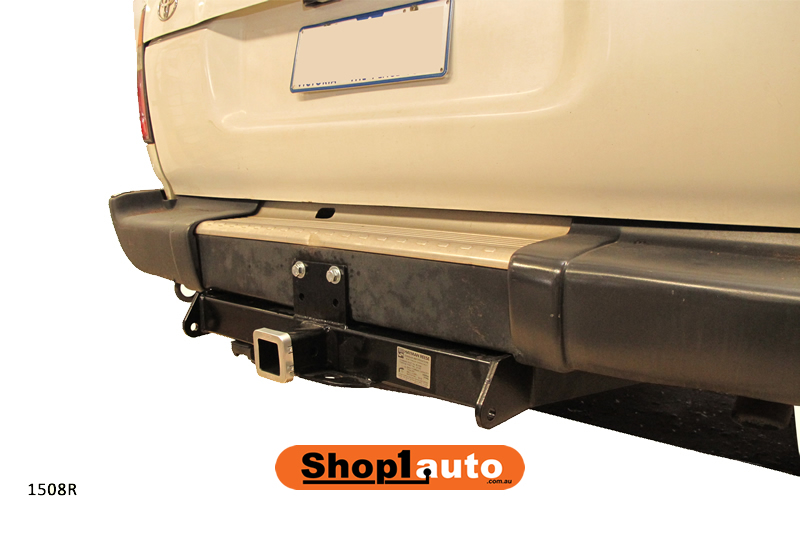

1/1990-2/1998 Landcruiser 80 Series Tiny Hayman Reese logo Hitch 1508R 2500/250 HN

. Link to Landcruiser towbar image 10/96 on rating 3500/350

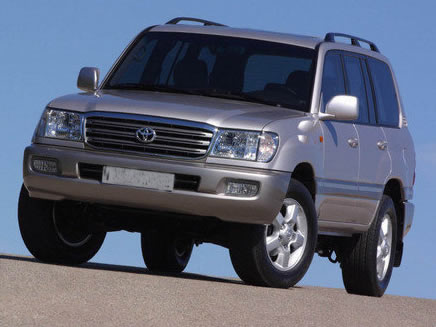

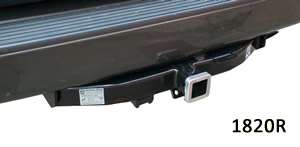

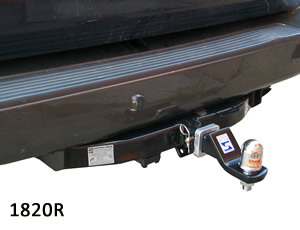

3/1998-10/2007 100 Series wagon, 6cyl, (Rigid front suspension) Tiny Hayman Reese logo Hitch 1820R 3500/350 HP

Link to Landcruiser 100 Series towbar image Link to Landcruiser towbar image

3/1998-12/2007 100 Series wagon, V8 & Turbo Diesel (Independant Front Suspension) Tiny Hayman Reese logo Hitch 1819R 3500/350 HP Link to Landcruiser towbar image

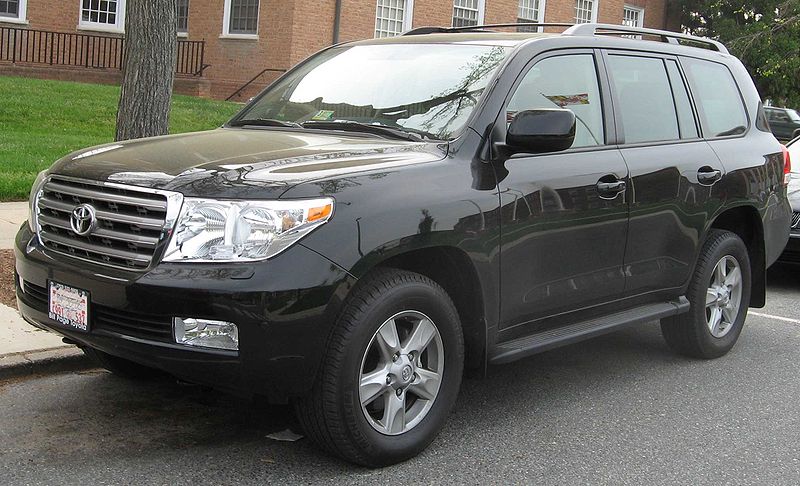

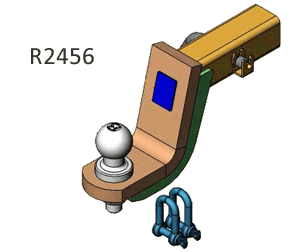

9/2007-12/2008 Landcruiser LC200, GXL, VX & Sahara Tiny Hayman Reese logo Hitch 2456RW 3500/350 H1A Price for towball mount and fitting of 7-pin electrical kit with #4826 ECU only. Bar pre-fitted. Link to Landcruiser towbar image

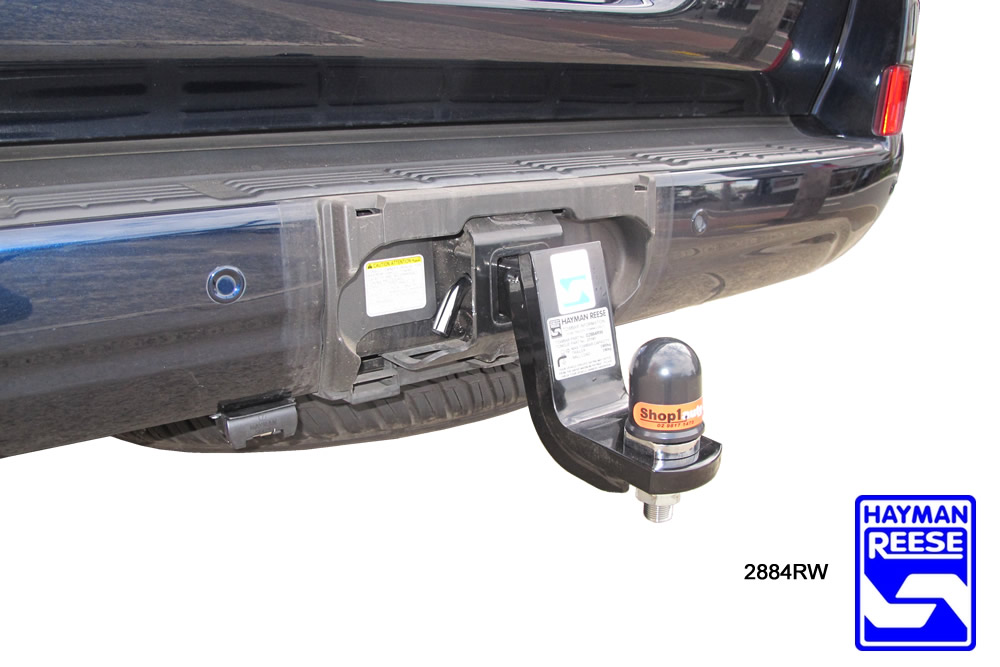

01/2009-07/2021 Landcruiser LC200, GXL, VX & Sahara Tiny Hayman Reese logo Hitch 2884RW 3500/350 H1A Price for towball mount and fitting of 7-pin electrical kit with #4826 ECU only. Bar pre-fitted. Link to Landcruiser towbar image

07/2021 on Landcruiser 300 Series Tiny Hayman Reese logo Hitch 3405RW 3500/350 H1A Price for installing towball mount and wiring kit to existing factory towbar.
Tiny Hayman Reese logo Hitch 3430RW 3500/350 H1A Price for installing towball mount and wiring kit to existing factory towbar. Low drop TBM.


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

X-Bar towbars

Hayman Reese X-bar

The Hayman Reese X-BAR for the Toyota Landcruiser 79 series is built tough for off-road action. Forged steel recovery points and heavy duty side arms give extremely strong anchor points for pulling a vehicle out of the bog. Improved depature angles and protection for electrical sockets makes the X-BAR the best choice for off-road use.
