Towbars Holden Colorado

Holden Colorado vehicle pic Holden Colorado Crew Cab ute vehicle pic

Find Holden Colorado roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
7/2008-05/2012 Tub Body, NO rear bumper and Cab-chassis (2&4door) Tiny Hayman Reese logo Tongue 2539W 1250/90 Price tag HF

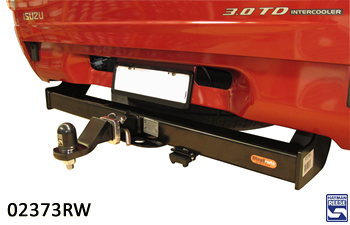

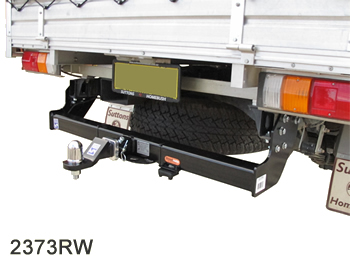

Tiny Hayman Reese logo Hitch 2373RW 3000/300 Price tag HH Link to Holden Colorado towbar image

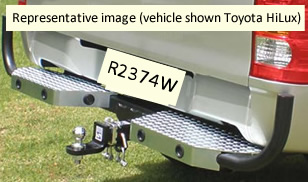

Tiny Hayman Reese logo HLPS 2374RW 2500/250 Price tag HZ Link to Holden Colorado towbar image includes protection bars and step plates

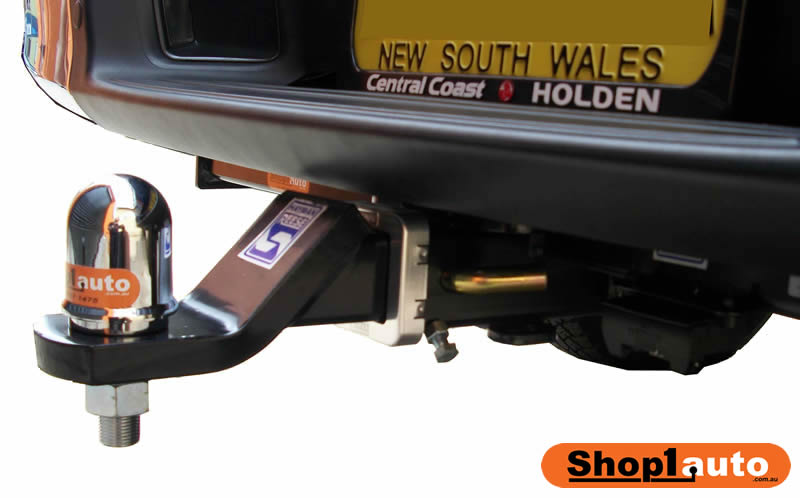

7/2008-05/2012 Tub body WITH rear bumper step. Tiny Hayman Reese logo Hitch 2372RW 3000/300 Price tag HJ Link to Holden Colorado towbar image

Note: DX, LX, LT models use ECU#4837. LTZ models use ECU#4835
06/2012 on 2dr and 4dr Cab Chassis (DX and LX models) Tiny Hayman Reese logo Hitch 2940RW 3500/350 Price tag HM Includes #4835/#4837 ECU protection

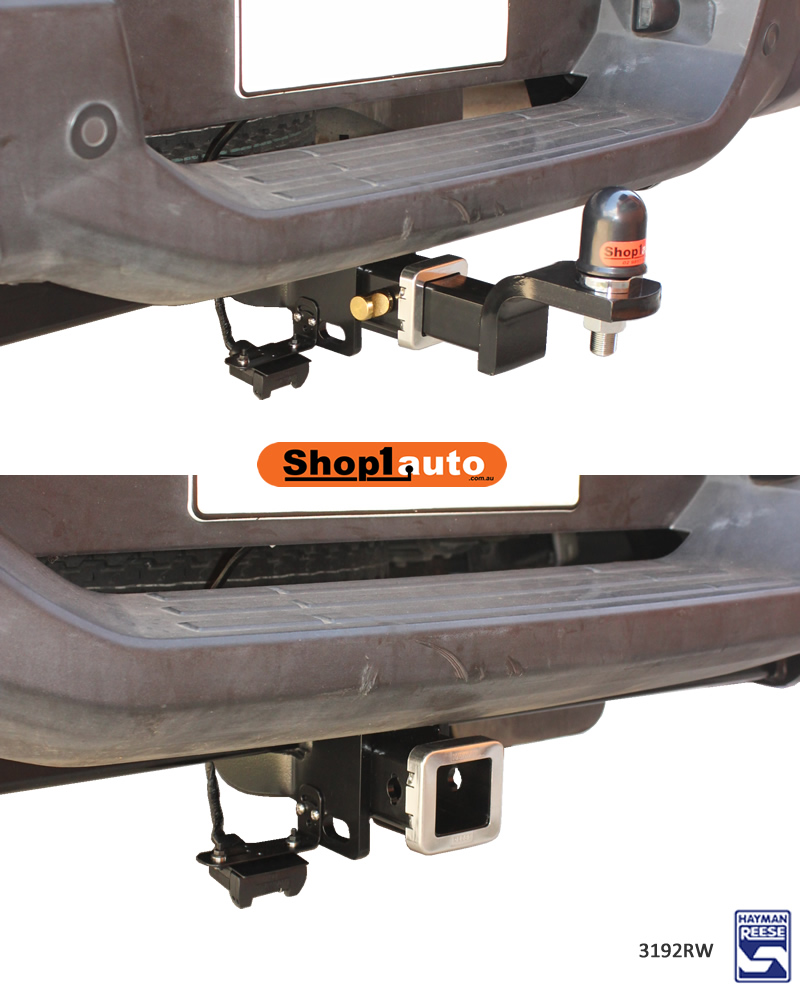

06/2012 on 2dr and 4dr tub body (incl. models with step) Tiny Hayman Reese logo Hitch 3192RW 3500/350 Price tag HM Includes #4835/ #4837 ECU protection Link to Holden Colorado towbar image


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar Rear protection bar

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLP: Hitch bar with lamp protectors

HLPS: Hitch bar, lamp protectors and step.

TLP: Standard bar with lamp protectors.

TLPS: Standard bar with lamp protectors and step.
