Towbars Volvo V40 & S40

Find Volvo S40 and V40 roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

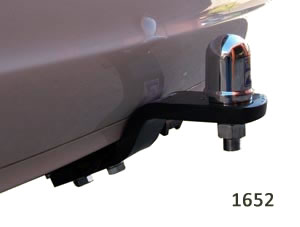

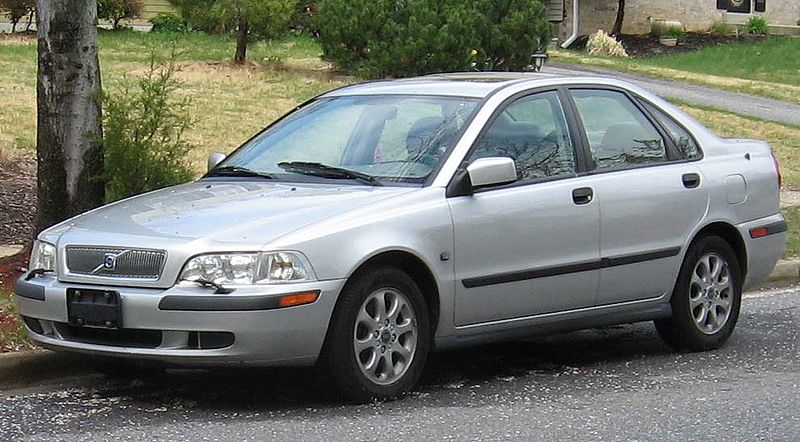

3/1997-6/2004 S40 sedan Link to Volvo S40 vehicle image & V40 wagon Link to Volvo S40 vehicle image Tiny Hayman Reese logo Tongue 1652 1400/75 hf Includes ECU unit to protect vehicle electronics Link to VOlvo S40 towbar image

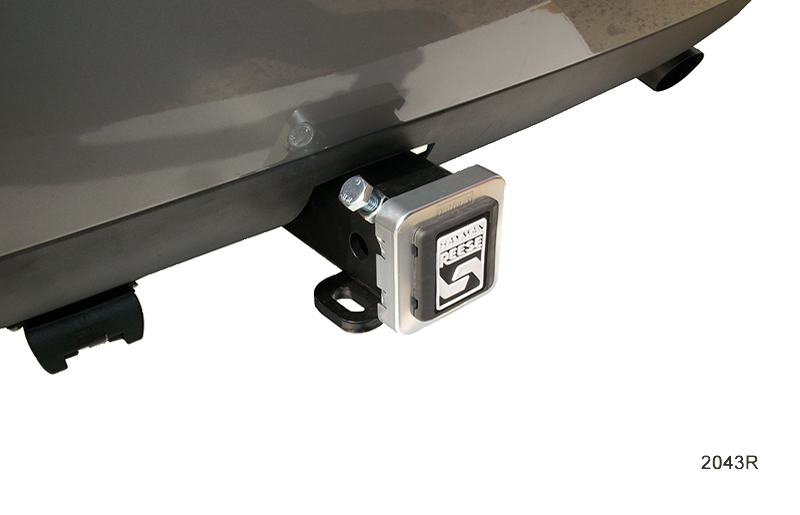

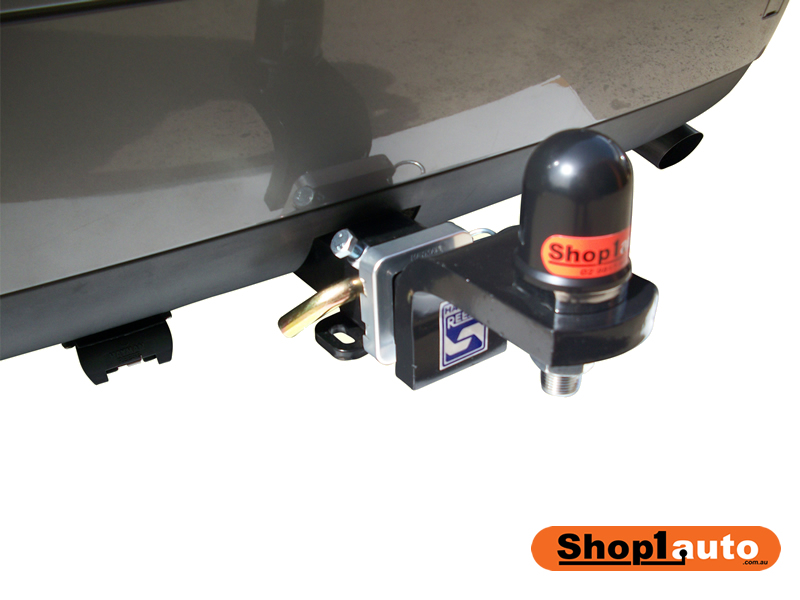

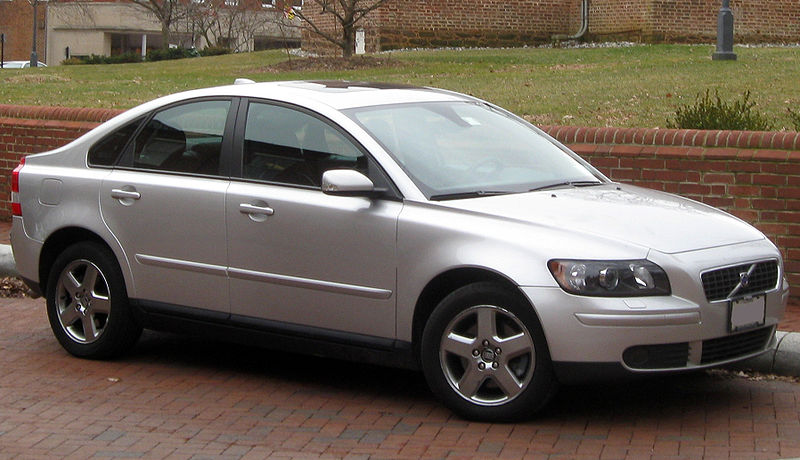

6/2004-10/2009 S40 sedan Link to Volvo S40 vehicle image Tiny Hayman Reese logo Hitch 2043R 1500/75 HT

Includes ECU unit to protect vehicle electronics. Made-to-order bar, please call to check availability. Link to VOlvo S40 towbar image Link to VOlvo S40 towbar image

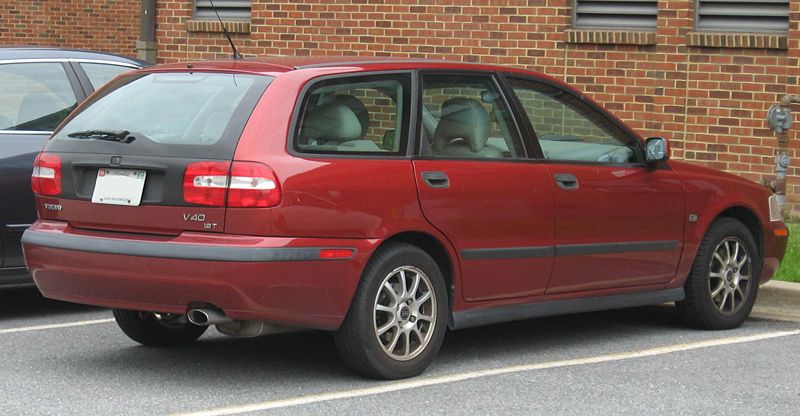

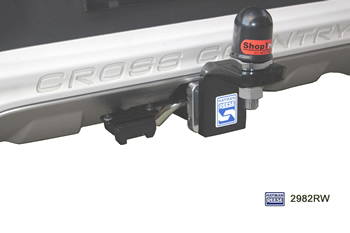

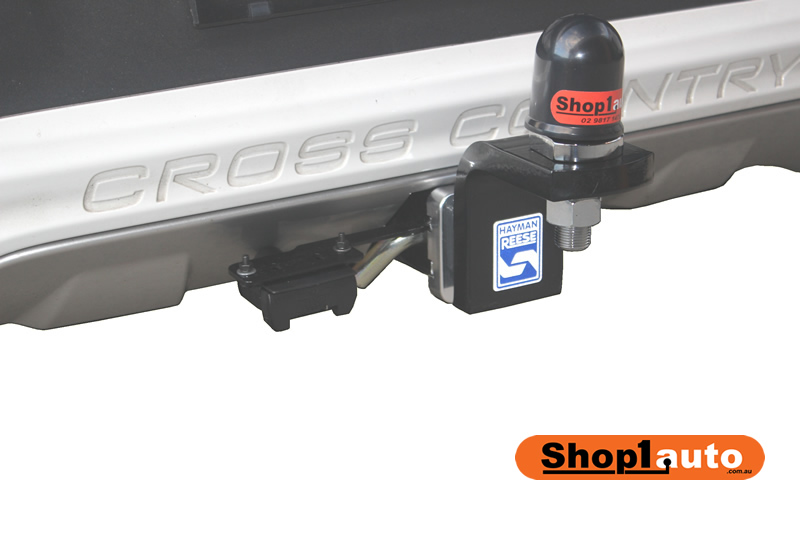

2/2013 on V40 Wagon Link to Volvo S40 vehicle image Tiny Hayman Reese logo Hitch 2982RW 1500/75 HT Includes ECU#4826 unit to protect vehicle electronics Link to VOlvo S40 towbar image


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

Hitch towbar towbar Hayman Reese tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
