Towbars Holden Commodore Sedan
| Find Holden Commodore roof racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |
| 10/1991-7/1997 | V6 Commodore VP,VR,VS (WITHOUT independant rear suspension) |  |
Tongue |
1320 | 1250/90 |  |
|
| 01/1988-7/1997 | V8 Commodore VN to VS (WITHOUT independant rear suspension) | |
Hitch | 1319R | 2100/210 |  |
Does not fit S,SS,HSV or Club Sport. Includes #1422 boot support kit. |
| 10/1991-7/1997 | V6 Commodore VP,VR,VS (WITH independant rear suspension) | |
Tongue | 1468 |
1250/90 | |
 |
|
Hitch | 1325R | 2100/210 |  |
Does not fit HSV or Club Sport. Includes #1422 boot support kit. |
||

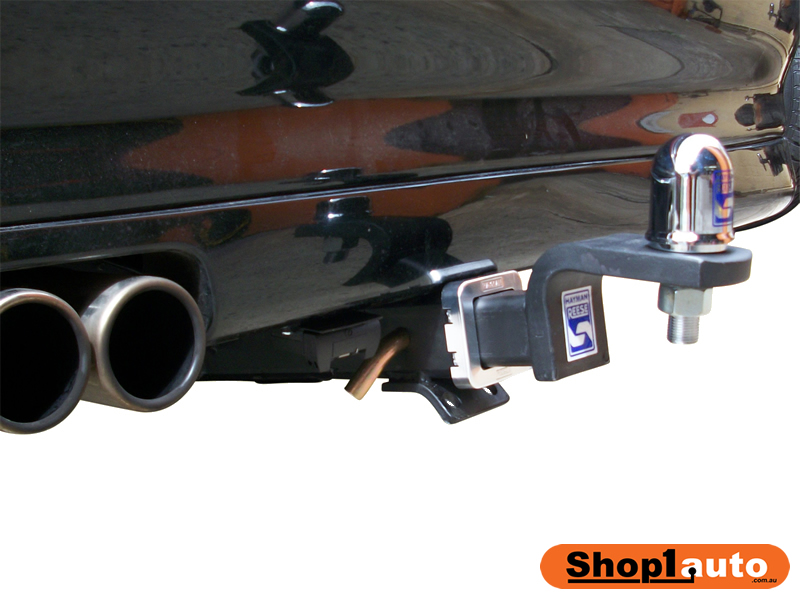

| 10/1991-8/1997 | V8 Commodore VP,VR,VS (WITH independant rear suspension) | |
Hitch | 1328R | 2100/210 | |
Does not fit HSV or Club Sport. Includes #1422 boot support kit.   |

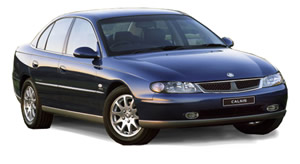

| 8/1997-9/2002 | Commodore VT,VX | |
Tongue | 1571W | 1250/90 | |
 |
|
Hitch | 1803RW | 2100/210 |  |
|||
| 10/2000-7/2006 | Commodore VX,VY HSV Club Sport ONLY | |
Hitch | 1816R | 2100/210 |  |
|
| 10/2002-7/2006 | Commodore VY, VZ | |
Tongue | 1935W | 1250/90 | |
|
|
Hitch | 1929RW | 2100/210 |  |
|||

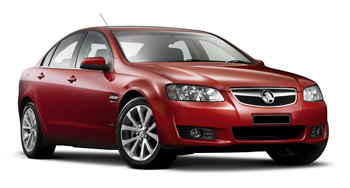

| 8/2006-05/2013 | Commodore VE | |
Tongue | 3006W | 1250/125 |  |
 Includes 4826ECU protection unit |
|
Hitch | 2184RW | 2100/210 |  |
 Includes 4826 ECU protection unit |
||
| 05/2013-10/2017 | Commodore VF | |
Tongue | 03023W | 1200/120 |  |
Includes 4839ECU protection unit. |
|
Hitch | 3037RW | 2100/210 |  |
Incl. 4839ECU  |
||
| 10/2017 onward | Commodore ZB | |
Hitch | 3240RW | 2100/90 | |
Includes 4839ECU and #4936 tail |
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Standard (Tongue) towbars
The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
Hitch Receiver towbars
The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
Gallery: VS Commodore towbar

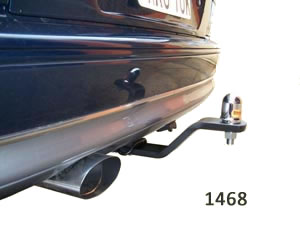

VS Commodore towbar #1468
Gallery: VT/VX Commodore towbar
1571 Standard towbar Commodore VT/VX

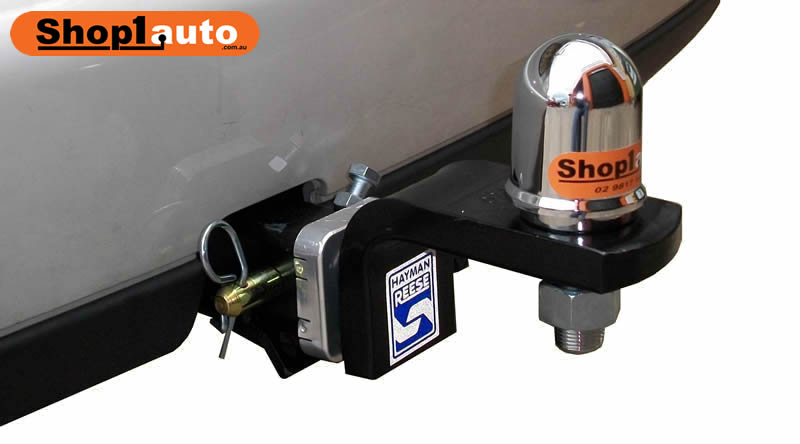

Quick release towbar Commodore VT/VX
Gallery: VY/VZ Commodore towbar

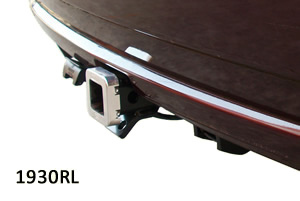

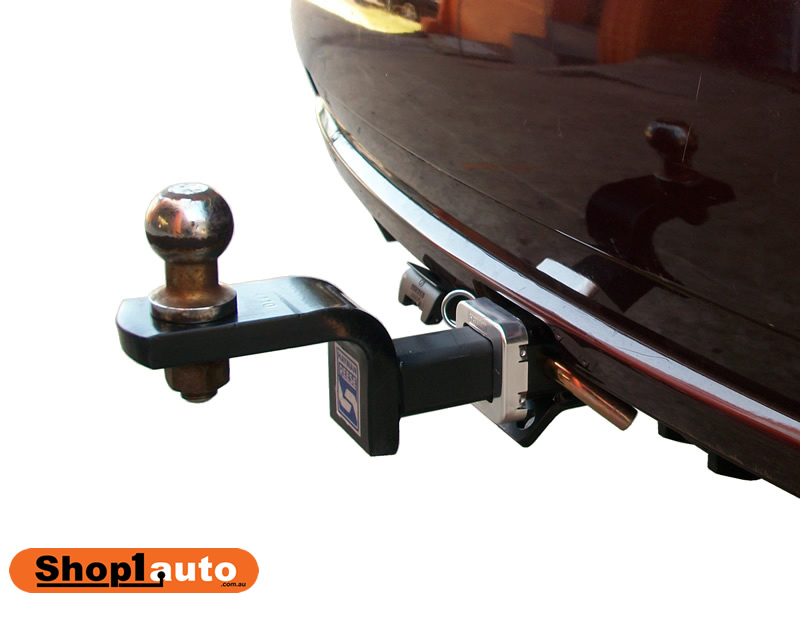

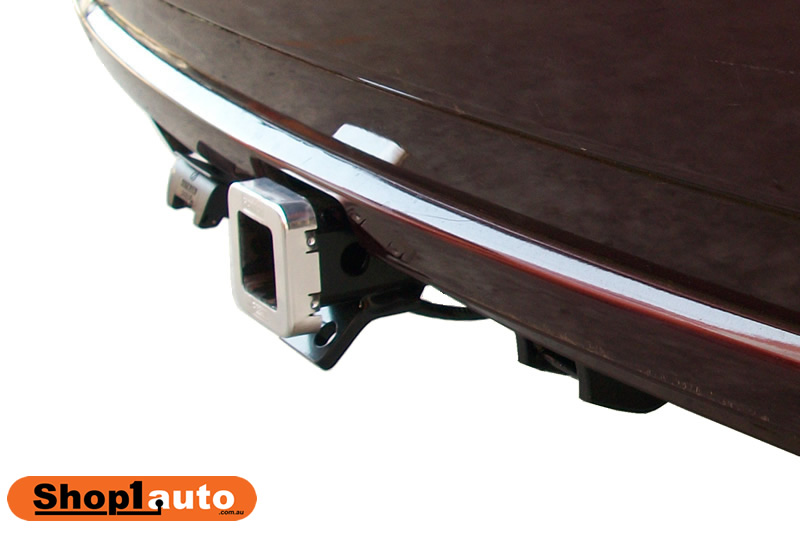

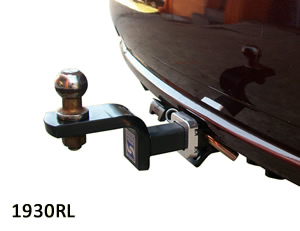

1600kg quick release hitch, VY Commodore sedan
1600kg quick release hitch, VY Commodore sedan
VZ Commodore Hitch towbar
Gallery: VE Commodore towbars

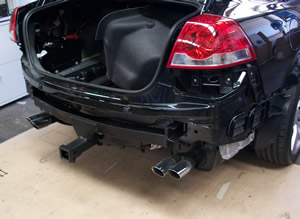

Fitting hitch bar to VE Commodore

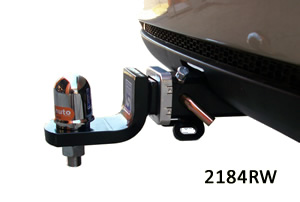

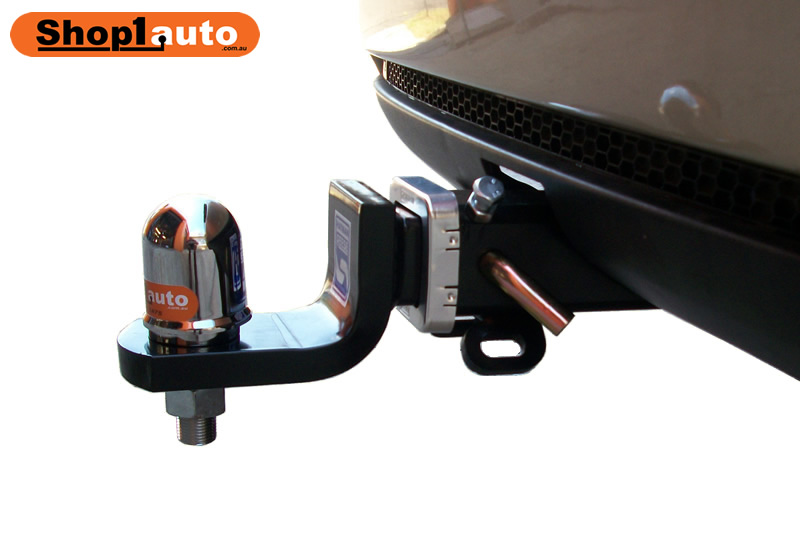

VE Commodore hitch tow bar

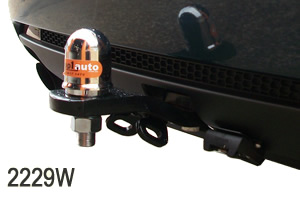

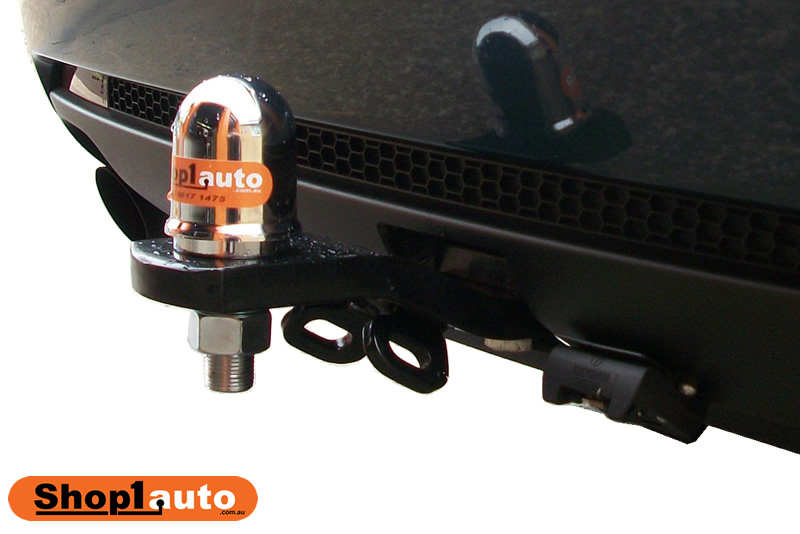

VE Commodore standard towbar, Hayman Reese
Gallery: VF Commodore towbars

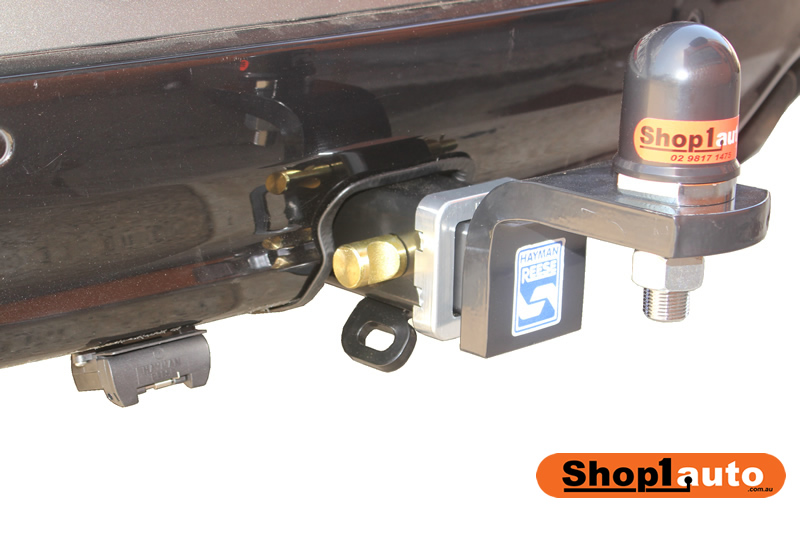

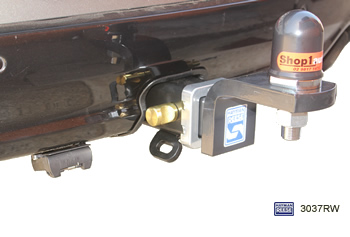

VF Calais towbar 3037RW
