Towbars Vitara & Grand Vitara
| Find Suzuki Vitara roof racks here | |||||||
|---|---|---|---|---|---|---|---|
| Date | Vehicle description | Make | Type | Part # | Rating | Fitted $ | Comments |
| up to 4/1997 | Vitara 4 cyl (1.6ltr)  |
 |
Tongue | 1493 | 1000/80 |  |
2 door |
|
Tongue | 1210 | 1000/80 | |
4 door, Made-to-order please call to check availability | ||

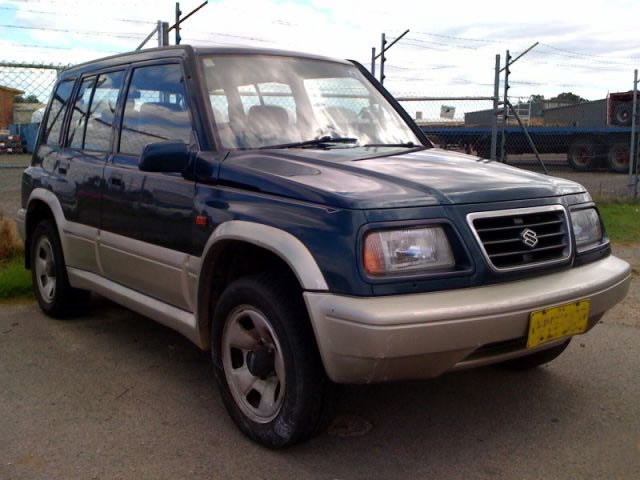

| 03/1995-03/1998 | Vitara V6 (2ltr)  |
|
Tongue | 1413 | 1200/90 |  |
Made-to-order |

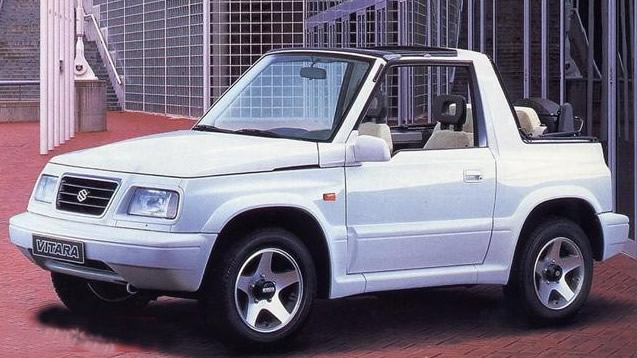

| 5/1997-12/1998 | Vitara 4cyl (2ltr) |
Sorry we have no bar available | |||||
| 06/2015-10/2018 | Vitara LY | |
Hitch | 3154RW | 1200/120 |  |
|
| 11/2018 on | Vitara LY (series II) | |
Hitch | 3310RW | 1200/120 |  |
|
| Find Suzuki Grand Vitara roof racks here | |||||||

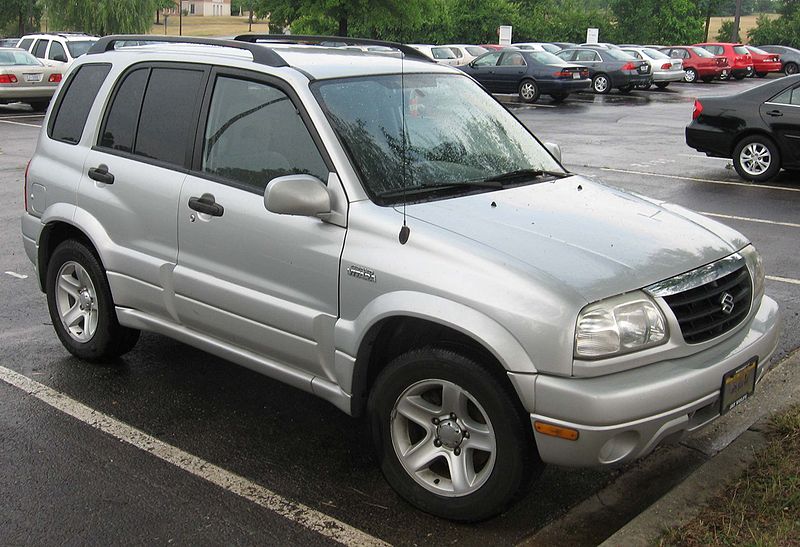

| 6/1998-8/2005 | Grand Vitara 4&6 cylinder, 3&5 door  |
|
Tongue | 1616 | 1200/75 |  |
|
|
Hitch | 1868R | 1850/140 |  |
|
||

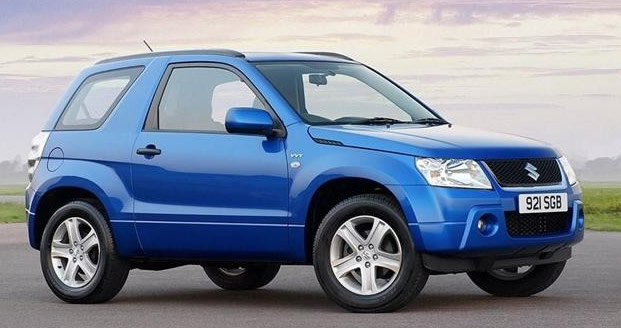

| 9/2005 on | Grand Vitara 3 door |
|
Hitch | 2115RW | 1600/85 |  |
  |

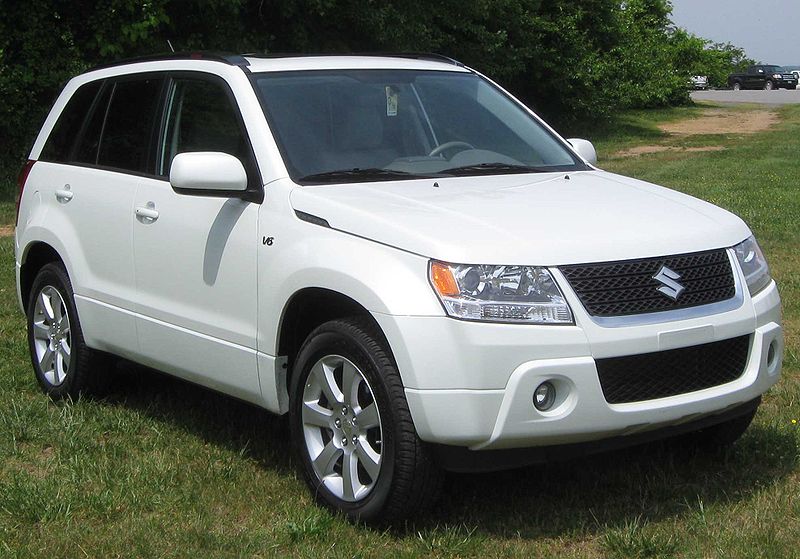

| 9/2005 on | Grand Vitara 5 door |
|
Hitch | 2114RW | 2000/200 | |
|
Prices include fitting, trailer lighting socket, chrome ball and cap.
Rating = max trailer/max down load on ball
How to organise your tow bar fitting.
Tow bar Types
Standard (Tongue) towbars
The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
Hitch Receiver towbars
The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
Gallery Suzuki Vitara Towbars

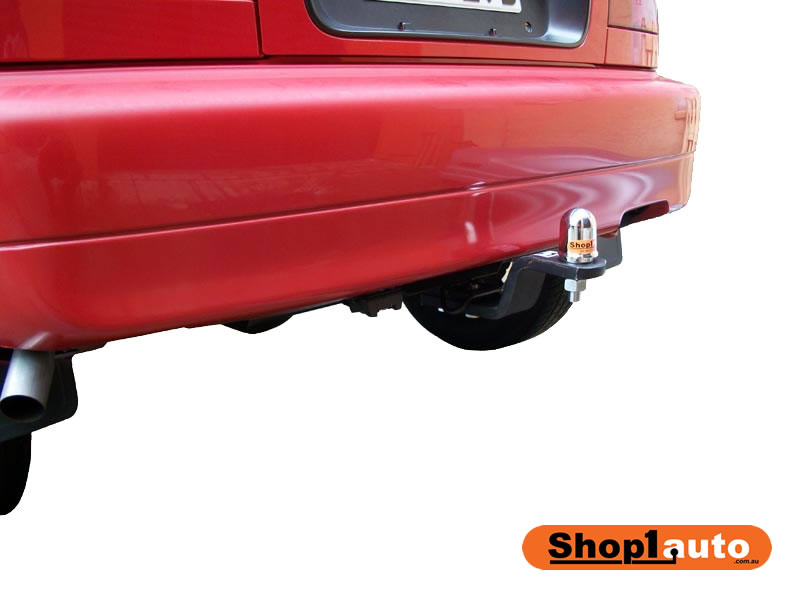

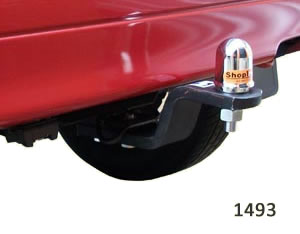

Towbar Suzuki Vitara 3dr, Pre 1997

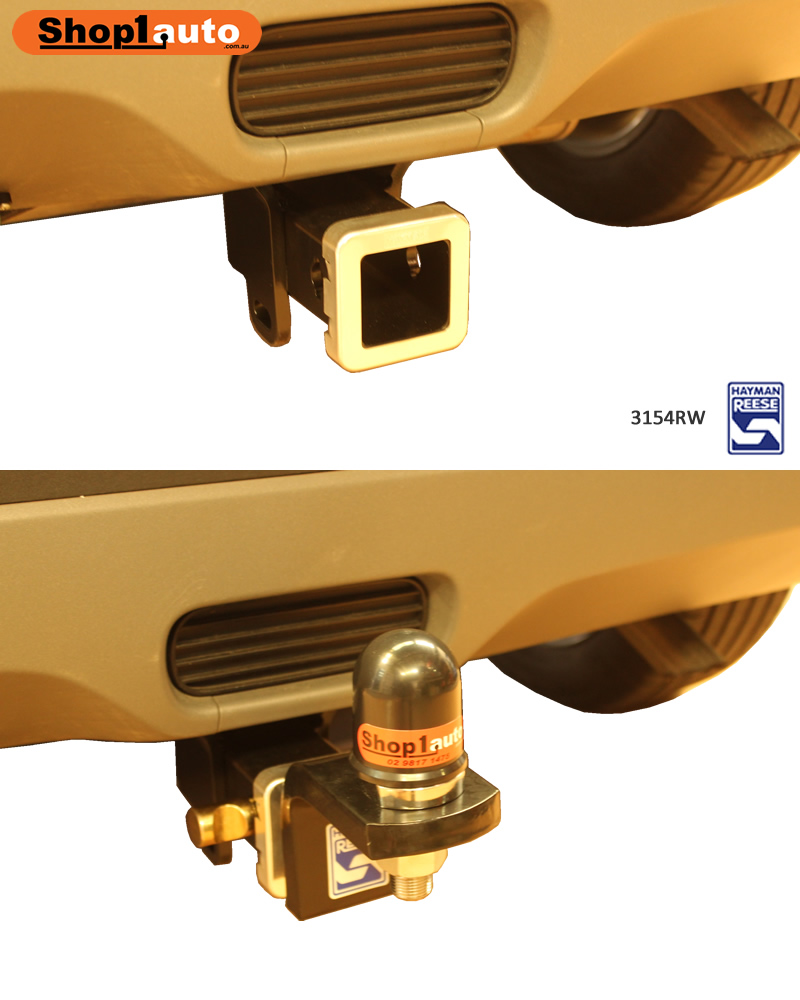

Towbar Suzuki Vitara 2015 on

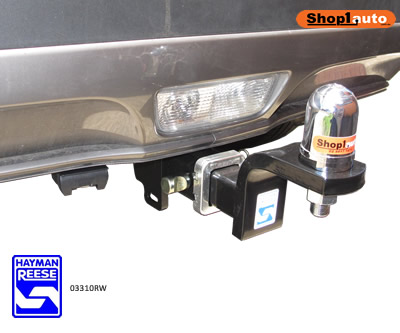

Towbar Suzuki Vitara 2019 on
Gallery Suzuki Grand Vitara '98-2005

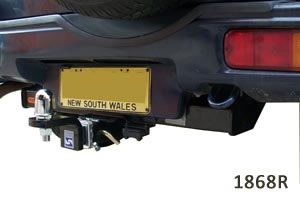

Hitch bar Hayman Reese

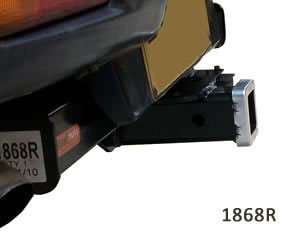

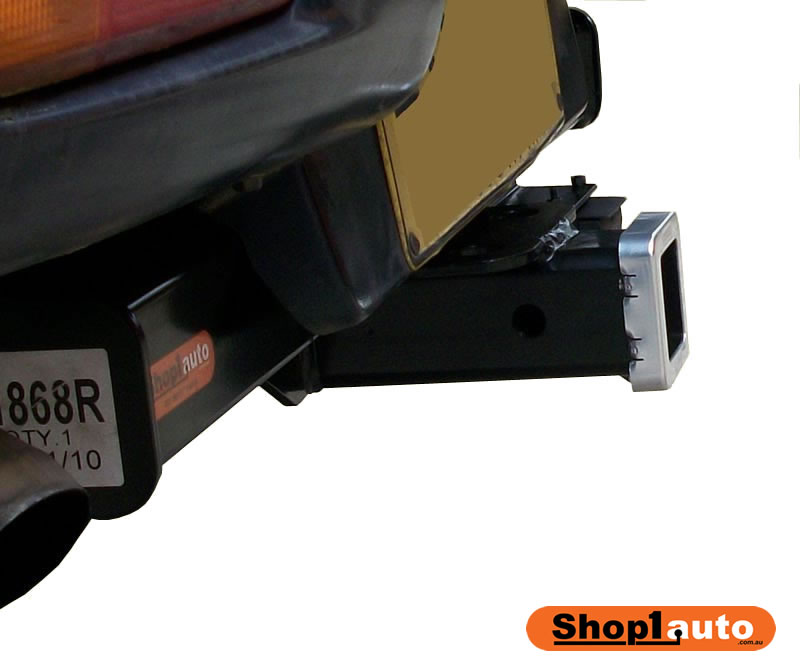

Hitch bar with tow ball mount removed
Gallery Suzuki Grand Vitara 2005 on Towbars

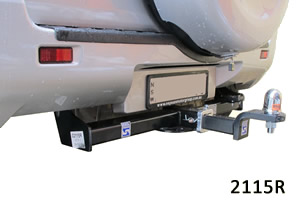

3dr Grand Vitara with quick release hitch

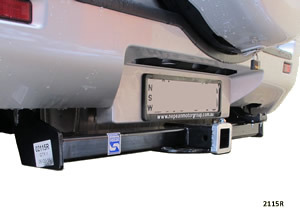

2115R towbar, 3 door Grand Vitara with hitch removed

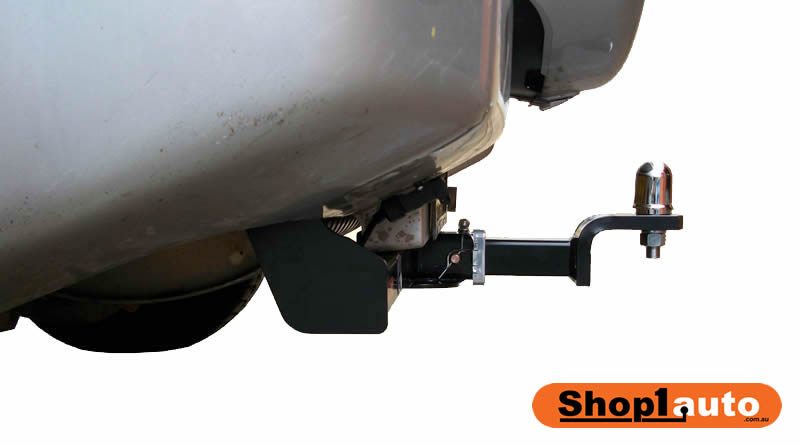

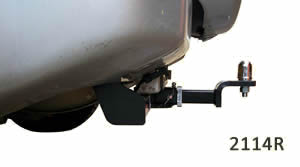

Hitch towbar Suzuki 5dr Grand Vitara 2005 on

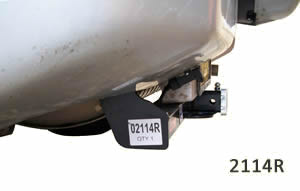

Towbar with hitch removed, 5dr Grand Vitara 2005 on
