Towbars Kia Carnival & Grand Carnival

Kia Carnival series 1 and Grand Carnival 2006 on

Find Kia Carnival roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
8/1999-12/2005

Kia Carnival link to Kia Grand Carnival vehicle image (KV series)

Tiny Hayman Reese logo Tongue 1773 1200/120 Price tag HF Link to Kia Grand Carnival towbar image
Tiny Hayman Reese logo Hitch 1766R 2000/200 Price tag HM
1/2006 on Kia Carnival (short wheel base) Wheel spacing 289cm no bar available.

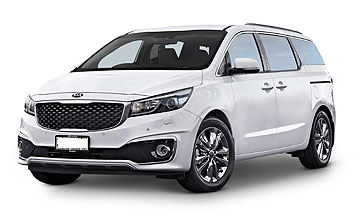

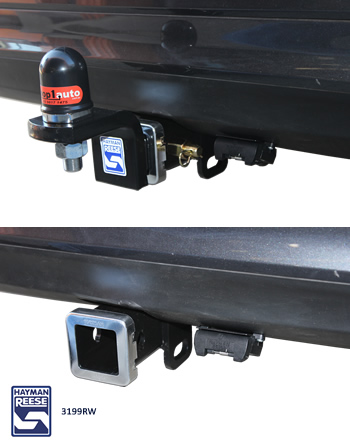

03/2015 on Kia Carnival (YP Series) link to Kia Grand Carnival vehicle image Tiny Hayman Reese logo Hitch 3199RW 2000/200 Price tag HM includes #4826ECU protection unit

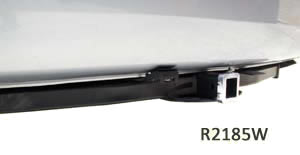

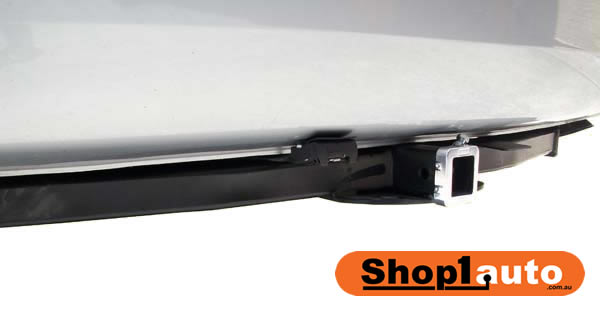

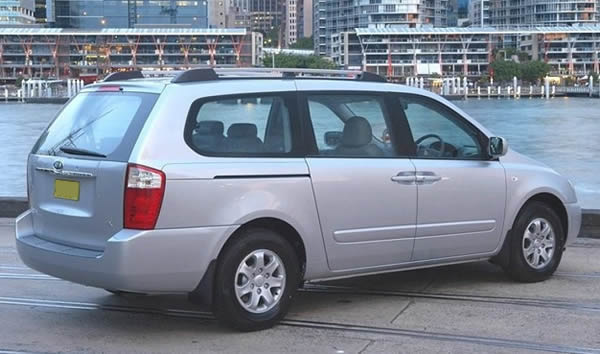

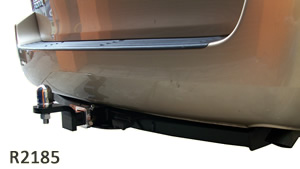

1/2006-03/2015 Kia Grand Carnival (long wheel base) link to Kia Grand Carnival vehicle image Tiny Hayman Reese logo Hitch 2185RW 2000/200 Price tag HJ

Link to Kia Grand Carnival towbar image Long wheel base only. Wheel spacing 302cm centre to centre. Includes #4826ECU electronic protection.

03/2015 on Kia Grand Carnival Awaiting advice on new bar.


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
