Towbars Hyundai Santa Fe

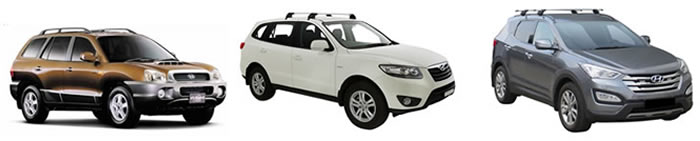

Hyundai Santa Fe vehicle image

Find Hyundai Santa Fe roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
Series 1: (SM)
2/2001-3/2006 Santa Fe (SM) (1833RL) Discontinued
Series 2: (CM)

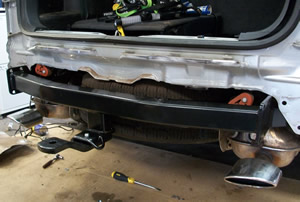

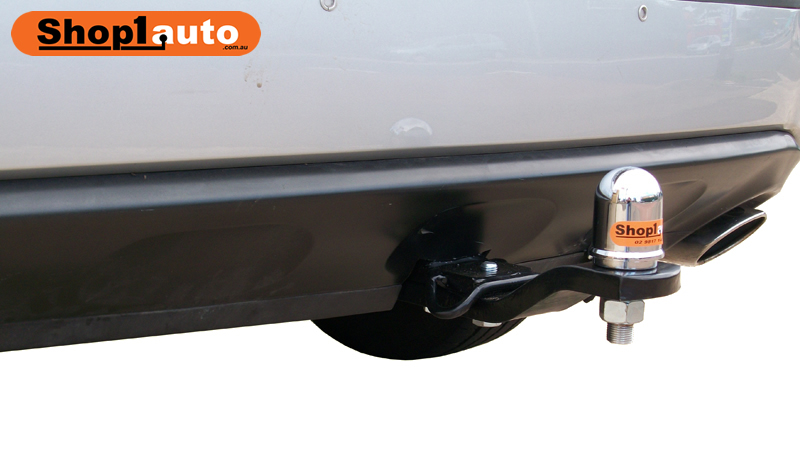

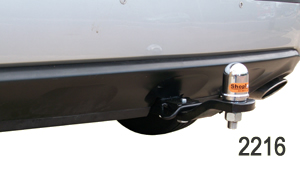

4/2006-1/2010 Santa Fe (CM) Tiny Hayman Reese logo Tongue 2216 1200/100 hq

Link to Hyundai Santa Fe towbar imageLink to Hyundai Santa Fe towbar fitting image

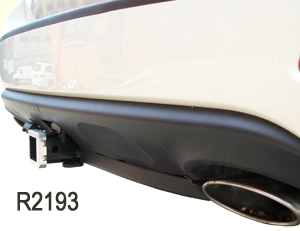

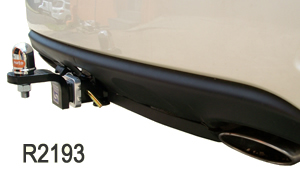

Tiny Hayman Reese logo Hitch 2193R 2000/150 Price tag HQ

Link to Hyundai Sant Fe towbar imageLink to Hyundai Santa Fe towbar pic

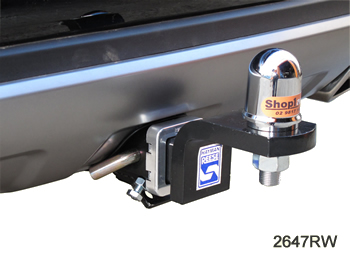

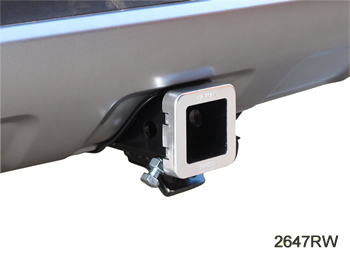

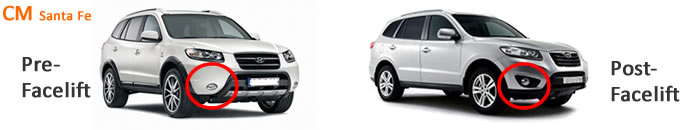

2/2010-08/2012 Santa Fe (CM facelift) Tiny Hayman Reese logo Hitch 2647RW 2000/150 hq

Link to Hyundai Santa Fe tow bar pic hitch fitted Link to Hyundai Santa Fe tow bar pic hitch fitted Link to Hyundai Santa Fe towbar image

Series 3: (DM)

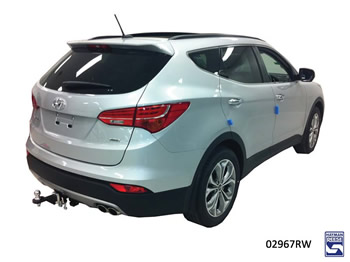

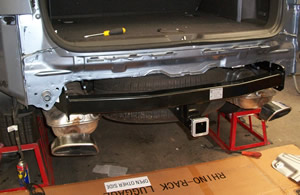

09/2012-10/2015 Santa Fe (DM) Tiny Hayman Reese logo Hitch 2967RW 2500/100 Price tag hk Link to Hyundai Santa Fe towbar fitting image

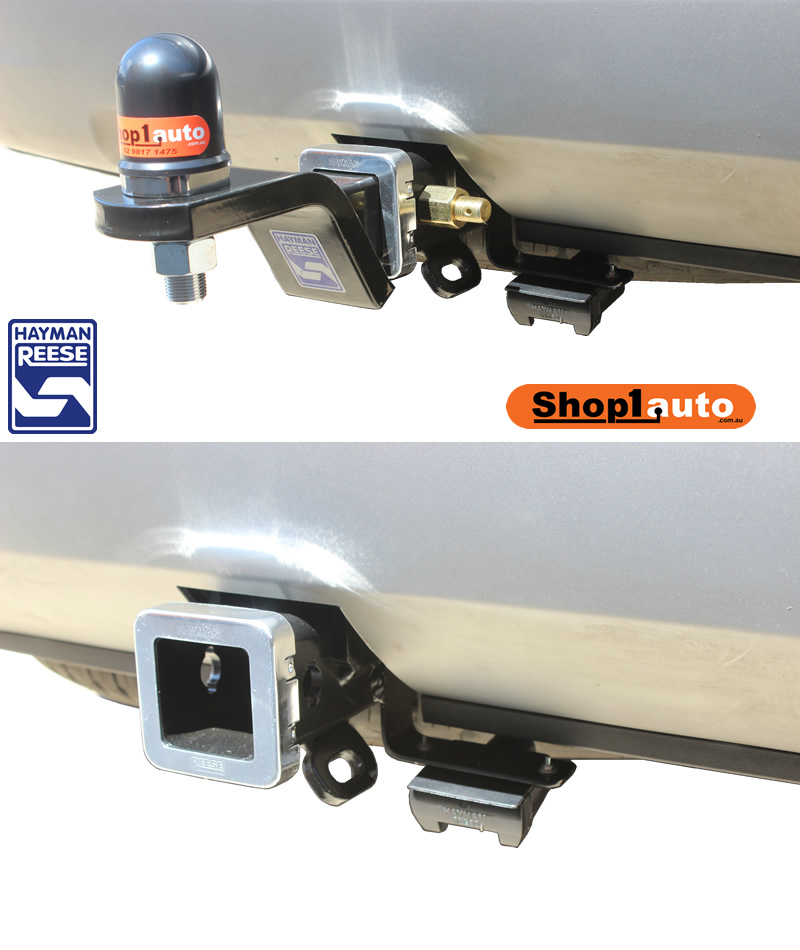

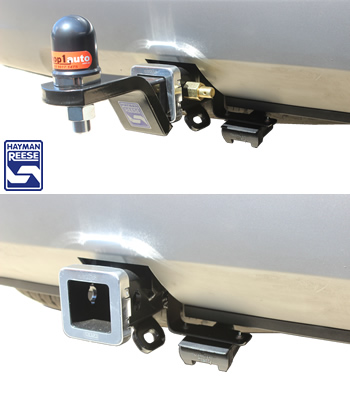

10/2015-04/2018 Santa Fe (DM3) Tiny Hayman Reese logo Hitch 3156RW 2500/100 hq

Link to Hyundai Santa Fe towbar fitting image 3156RW more info

Series 4: (TM)

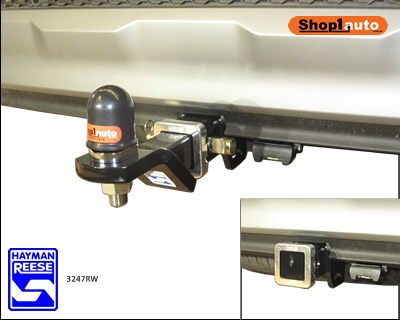

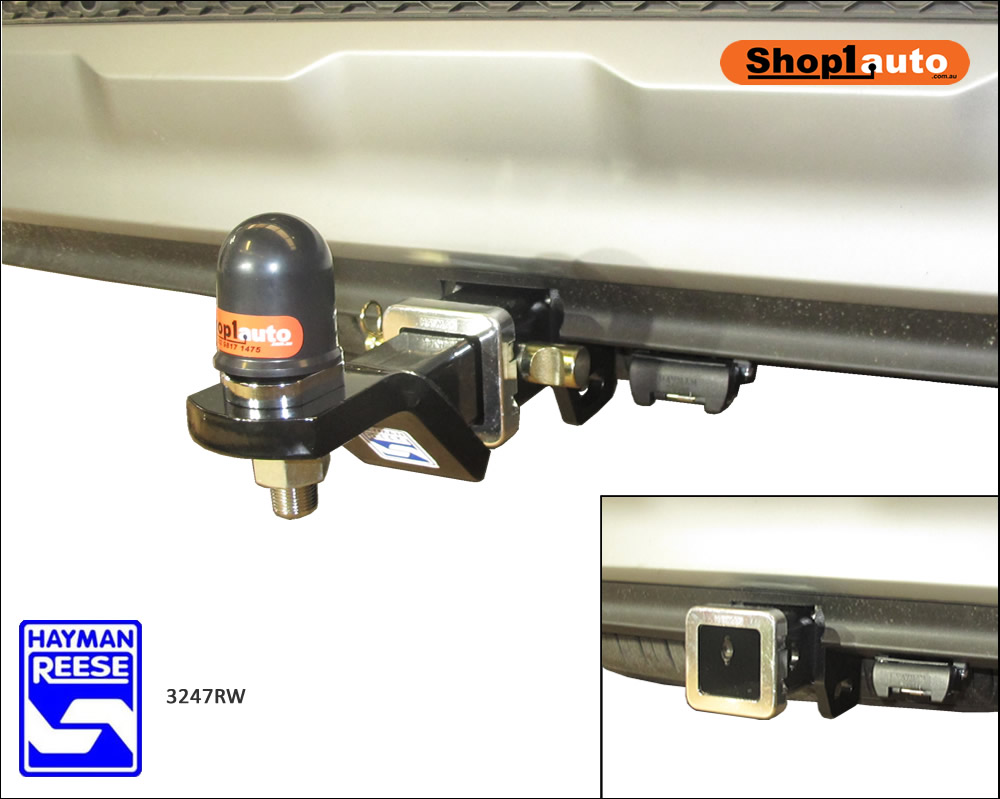

04/2018-10/2020 Santa Fe (TM) Tiny Hayman Reese logo Hitch 3247RW 2000/100 hu Includes #4826 ECU protection unit. Link to Hyundai Santa Fe towbar  image 3247RW

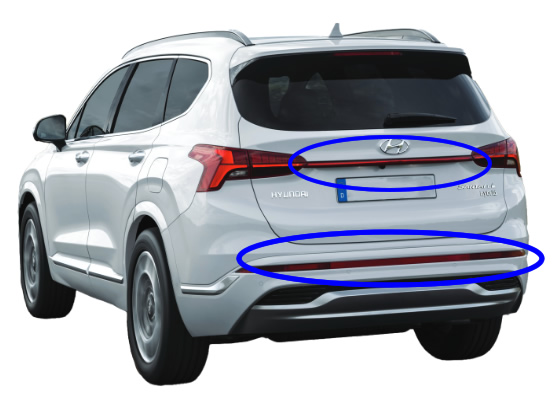

Series 4: (TM facelift) red LED light across full width of bumper and tail gate.
10/2020 on

Santa Fe (TM facelift)

Hybrid? not confirmed

Tiny Hayman Reese logo Hitch 3372RW 2000/200 hu Includes #4826 ECU protection unit.


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
