Towbars Toyota Kluger

recommendation

Toyota Kluger Series 1 vehicle pic Toyota Kluger Series 2 vehicle pic Toyota Kluger Series 2 vehicle pic

Find Toyota Kluger Roof Racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

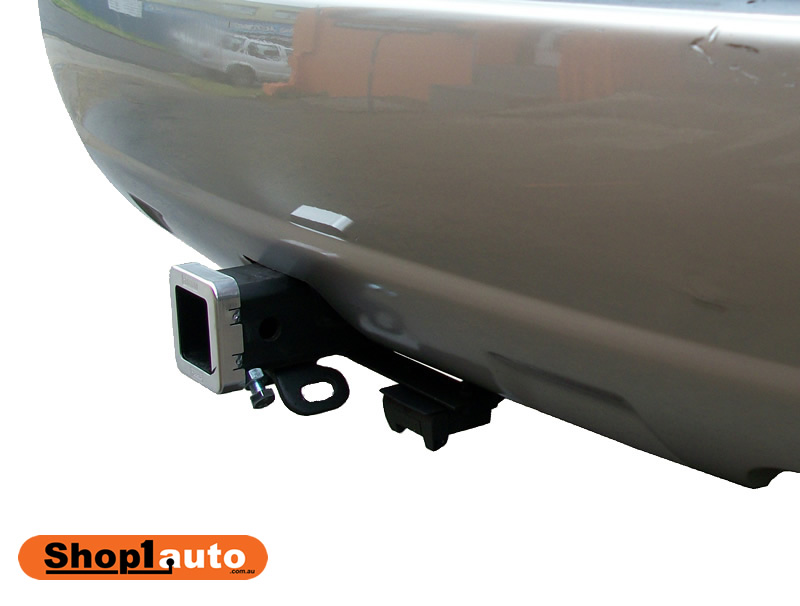

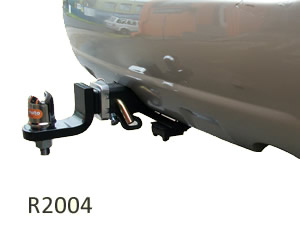

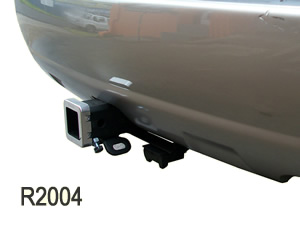

11/2003-7/2007 Kluger Series 1 Link to Toyota Kluger series 1 vehicle pic Tiny Hayman Reese logo Hitch 2004R 1500/150 HL

camera camera

8/2007-02/2014

Kluger Series 2 (GSU40R & GSU45R) Link to Toyota Kluger series 1 vehicle pic

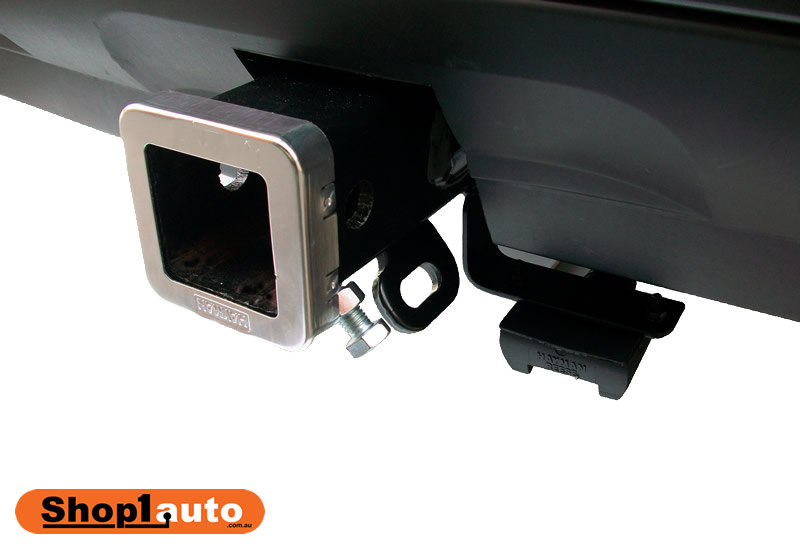

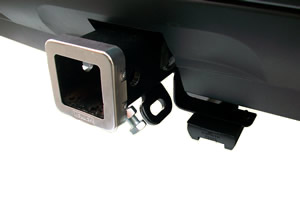

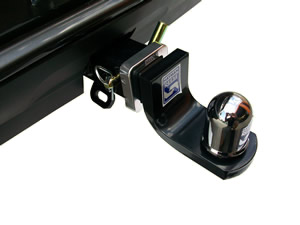

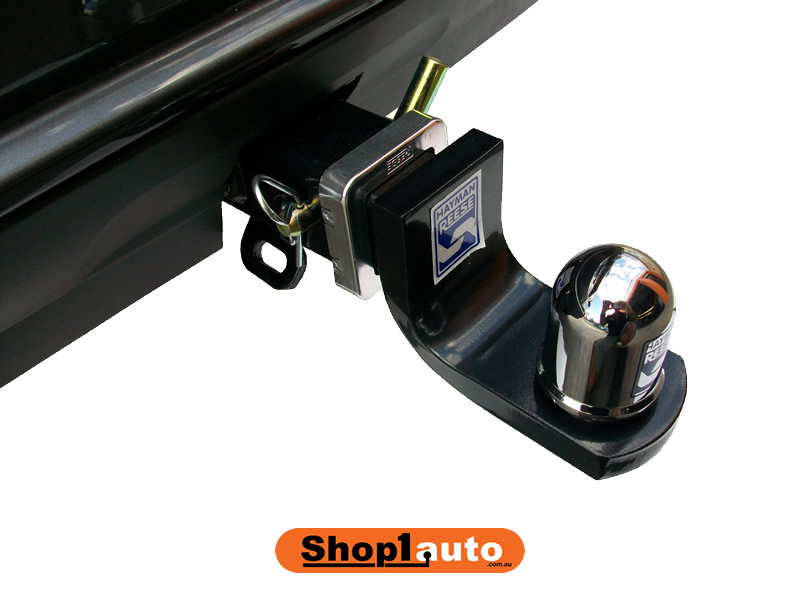

Tiny Hayman Reese logo Hitch 3052RW 2000/200 HL

cameracameraIncludes #4826 ECU protection unit

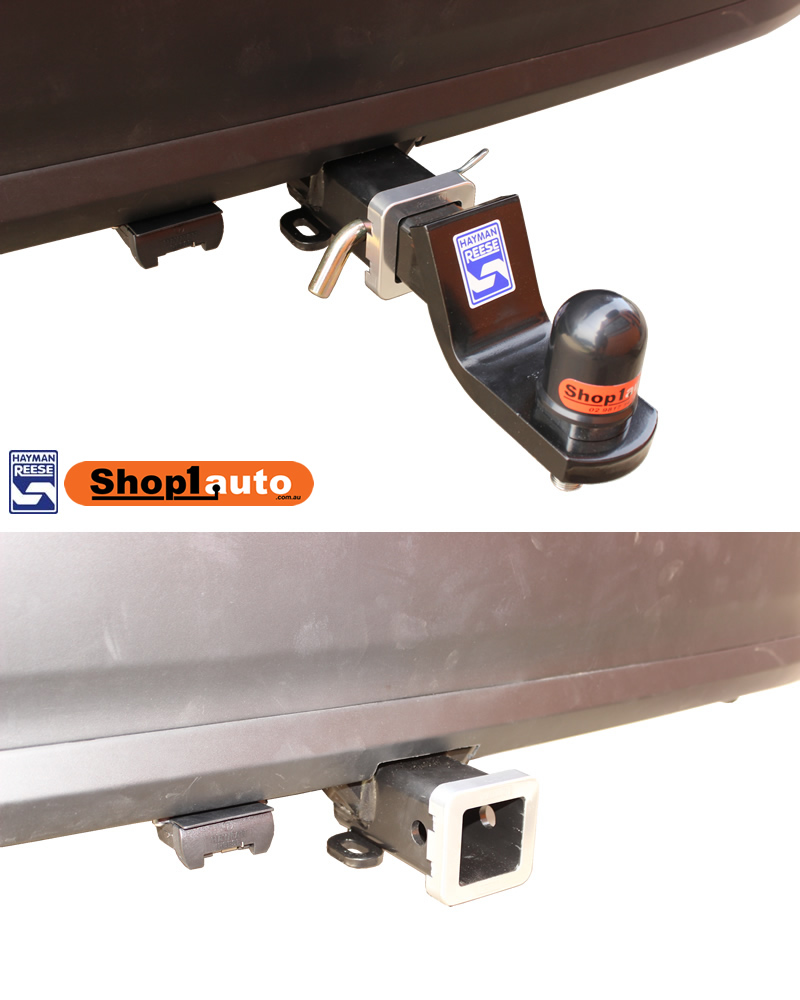

03/2014 on Kluger Series 3 (GSU50 & GSU55R) Link to Toyota Kluger series 1 vehicle pic Tiny Hayman Reese logo Hitch 3059RW 2000/200 HL

camera Includes #4826 ECU protection unit



Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

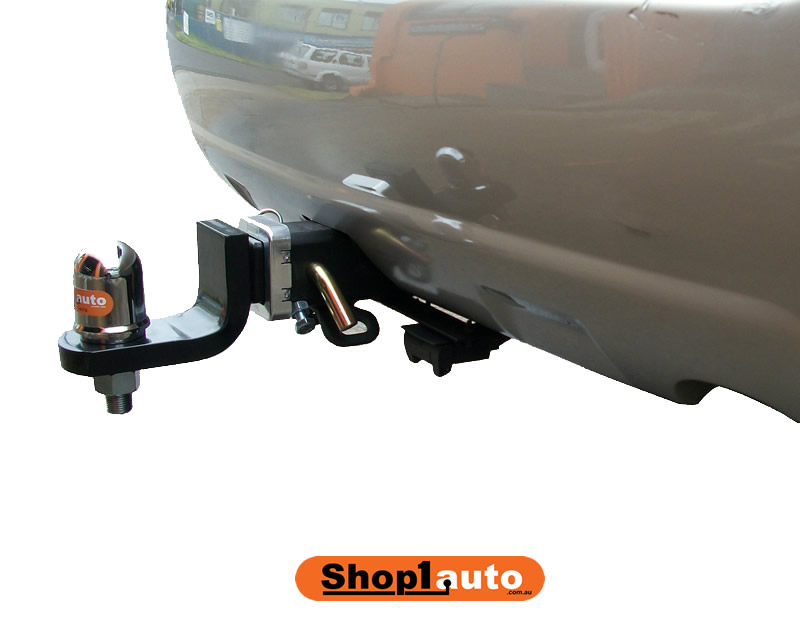

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available for both Series 1 and 2 Klugers with a 50mm square receiver socket. The hitch style towbar allows for quick removal of the towball mount when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Both the Series 1 and 2 Klugers take a couple of hours to fit because they require removal of the bumper. The bumper also has to be relieved to allow the hitch to pass through it. This is easy enough to do but we do spend a bit of time on it to make sure the cut is both accurate and neat.
