Toyota HiLux Tow bars

Toyota HiLux
Find Toyota Hilux roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

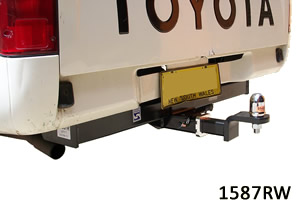

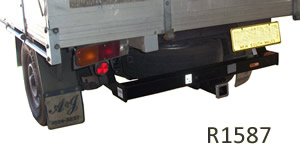

10/1983-4/2005 Cab Chassis 4WD Tiny Hayman Reese logo Hitch 1587R 1800/150 Hayman Reese tow hitch price L Toyota Hilux Link to Toyota Hilux towbar image Pre '97 rating 1500/150kg

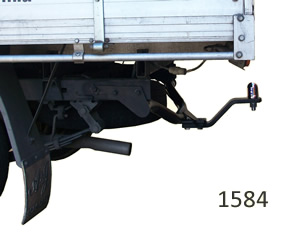

10/1983-4/2005 Cab Chassis 2WD Tiny Hayman Reese logo Tongue 1584 1250/90 Hayman Reece Price C Toyota Hilux Link to Toyota Hilux towbar image
Tiny Hayman Reese logo Hitch 1587R 1800/150 Hayman Reese tow hitch price L Toyota Hilux Link to Toyota Hilux towbar image Pre '97 rating 1500/150kg
10/1983-4/2005 Tub body, no bumper, 2WD Tiny Hayman Reese logo Tongue 1583 1250/90 Hayman Reece Price C Toyota Hilux
Tiny Hayman Reese logo Hitch 1587R 1800/150 Hayman Reese tow hitch price L Toyota Hilux Pre '97 rating 1500/150kg Link to Toyota Hilux towbar image
10/1983-4/2005 Tub body, with step bumper, 2WD/4WD incl. SR5 Tiny Hayman Reese logo Hitch 1615R 1800/180 Hayman Reese tow hitch price L Toyota Hilux Pre '97 rating 1500/150kg

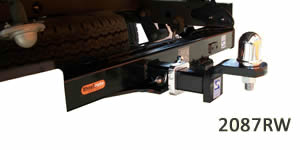

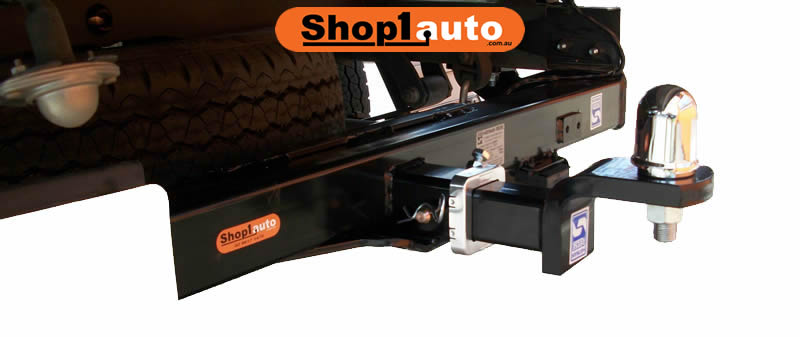

4/2005-9/2015 Cab Chassis 2WD/4WD Tiny Hayman Reese logo Hitch 2087RW 2500/250 Price tag HJ
3233RW 2500/250 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

4/2005-9/2015 Tub body, no bumper, 2WD Tiny Hayman Reese logo Tongue 2100W 1250/120 Hayman Reece Price C Toyota Hilux
Tiny Hayman Reese logo Hitch 2087RW 2250/225 Hayman Reese hitch receiver price M Tyota Hilux Link to Toyota Hilux towbar image Optional (8290) step/light protector available $695

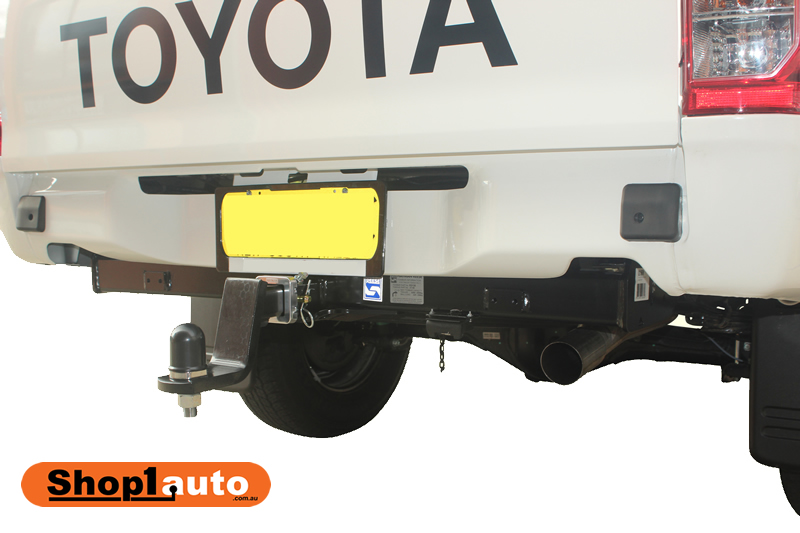

4/2005-9/2015 Tub body, no bumper, 4WD Tiny Hayman Reese logo Hitch 2136RW 2250/225 Hayman Reese hitch receiver price M Tyota Hilux Link to Toyota Hilux towbar image Optional (8290) step/light protector available $695
4/2005-9/2015 Tub body, 2/4WD with step bumper (incl. SR5) Tiny Hayman Reese logo Hitch 2852RW 2500/250 Hayman Reese hitch receiver price M Tyota Hilux

Link to Toyota Hilux towbar imageLink to Toyota Hilux towbar image

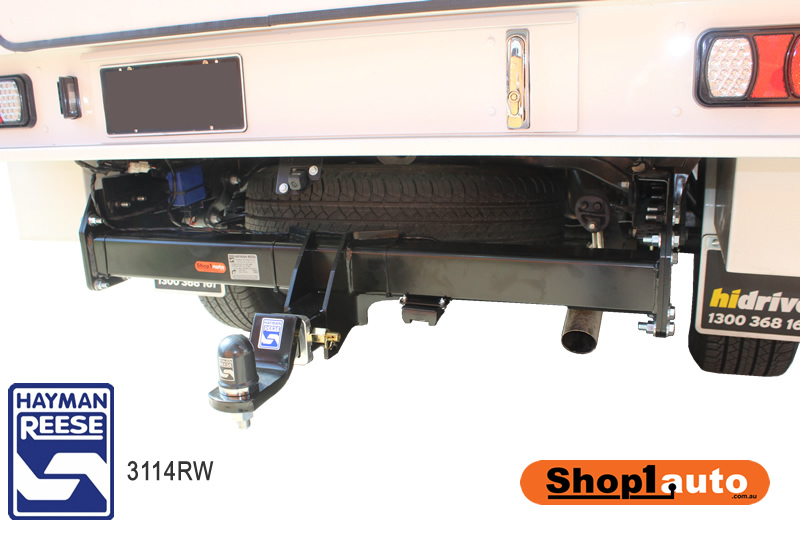

10/2015 on Cab Chassis Tiny Hayman Reese logo Hitch 3114RW 3500/350 Hayman Reese hitch receiver price M Tyota Hilux Link to Toyota Hilux towbar image Includes #4835ECU electronic protection unit
3232RW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

10/2015 on Dual cab with rear bumper Tiny Hayman Reese logo Special offer: $1195 while stocks last

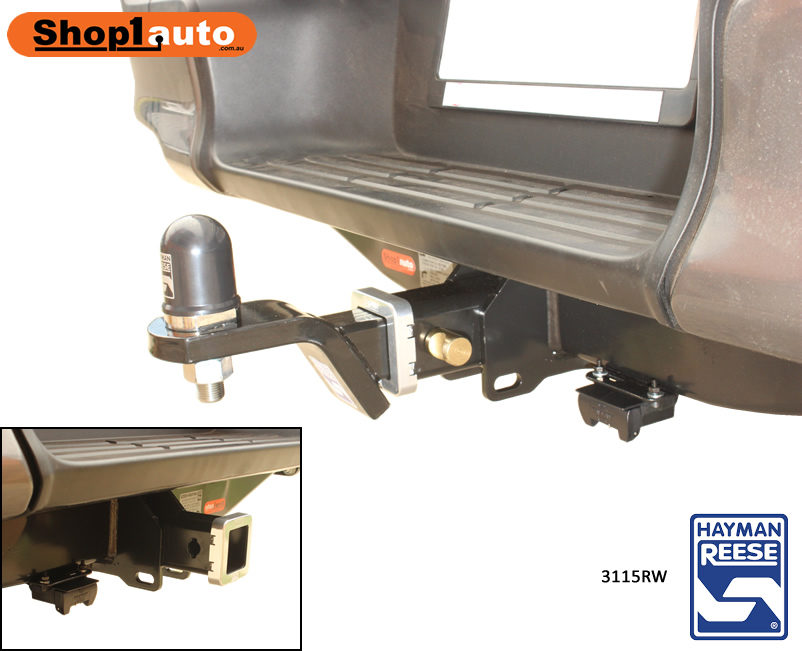

Hitch 3115RW 3500/350 Hayman Reese hitch receiver price M Tyota Hilux Link to Ford Ranger towbar image Includes #4835ECU electronic protection unit
3300XW 3500/350 Price tag HJ



10/2015 on SR5 with pre-fitted tow-bar Tiny Hayman Reese logo TBM 3191RW 3500/350 Hayman Reece Price C Toyota Hilux Price includes, tow ball mount, ball, vehicle specific wiring kit/install and compliance labels.


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) tow bars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

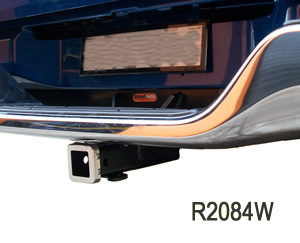

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

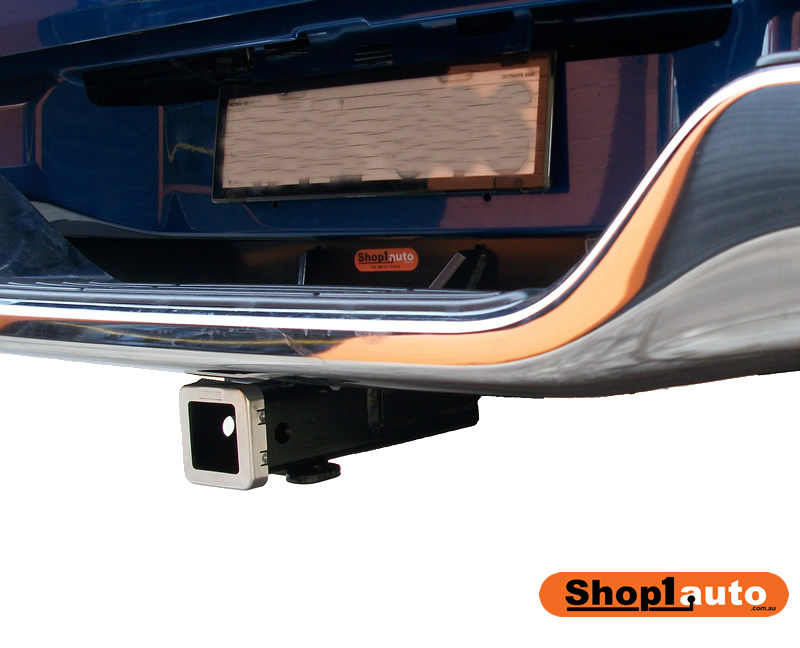

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. The hitch style tow bars for the Toyota Hilux come with a 50mm square receiver socket. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

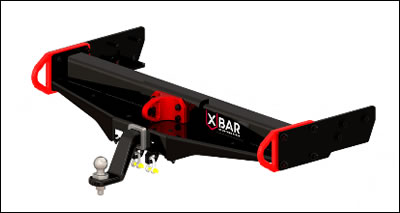

X-Bar towbars

Hayman Reese X-bar

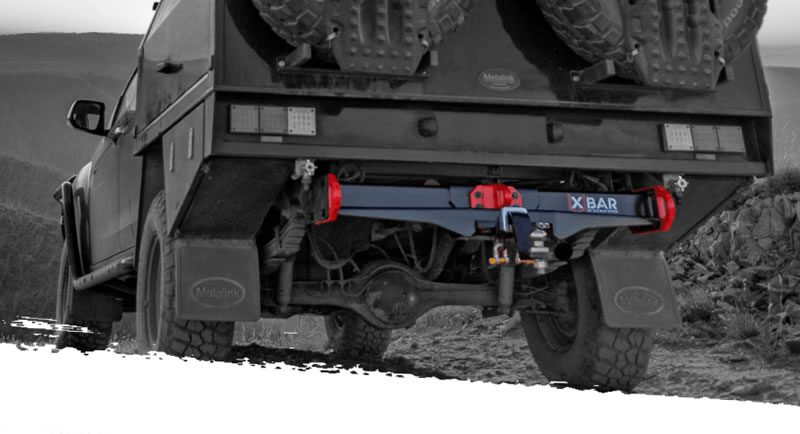

The Hayman Reese X-BAR for the Toyota Hilux is built tough for off-road action. Forged steel recovery points and heavy duty side arms give extremely strong anchor points for pulling a vehicle out of the bog. Improved depature angles and protection for electrical sockets makes the X-BAR the best choice for off-road use.
