Towbar accessories

Find Tow Bar for my car



Towbars Hyundai i30

Vehcile image Hyundai i30 hatchback Vehicle pic Hyundai i30 wagon


Find Hyundai i30 Roof Racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

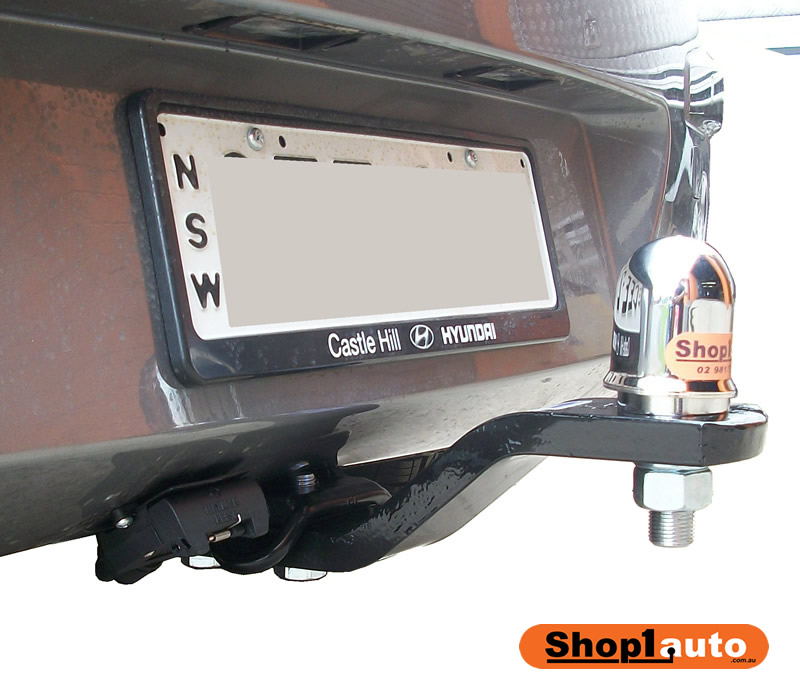

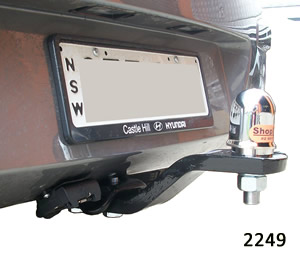

7/2007 -04/2012 Hyundai i30 hatch Tiny Hayman Reese logo Tongue 2249 1200/75 Price tag HE Link to Hyundai i30 wagon towbar image

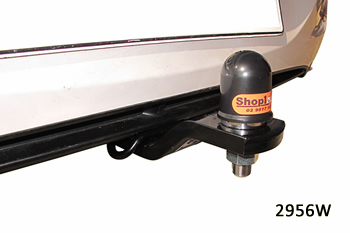

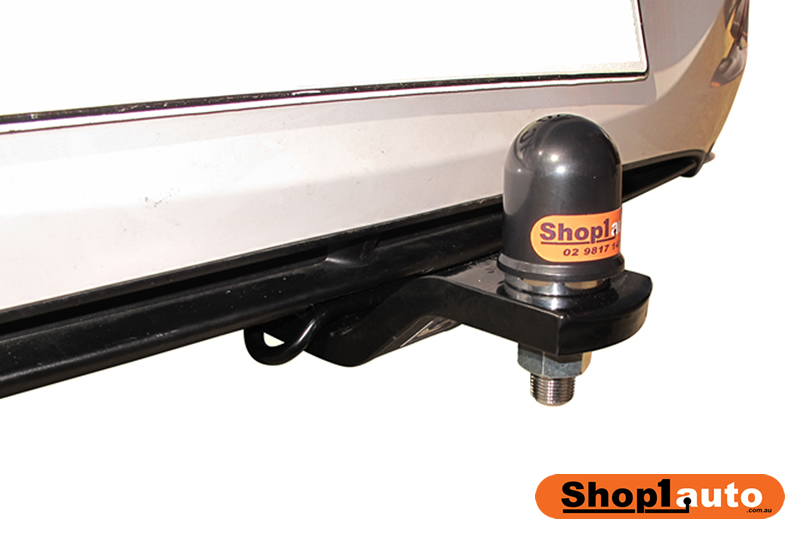

05/2012-03/2017 Hyundai i30 hatch Tiny Hayman Reese logo Tongue 2956W 1300/75 Price tag HI Link to Hyundai i30 wagon towbar image

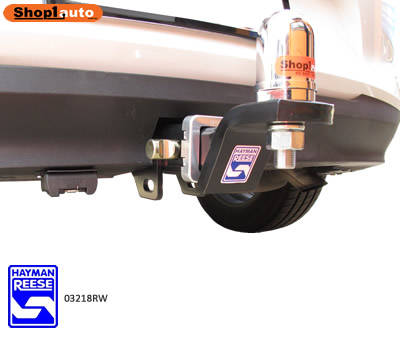

03/2017-03/2021 Hyundai i30 hatch Tiny Hayman Reese logo Hitch 3218RW 1300/75 Price tag HE

Link to Hyundai i30 wagon towbar image includes #4826 ECU electronic protection and #4936 tail.

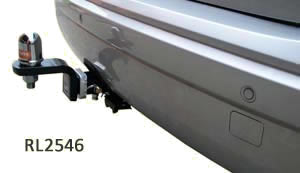

2/2009-04/2012 Hyundai i30 wagon Tiny Hayman Reese logo Hitch 2546RL 1200/75 hn Link to Hyundai i30 wagon towbar image

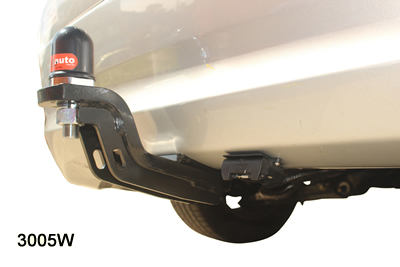

05/2012-2017 Hyundai i30 Tourer wagon Tiny Hayman Reese logo Tongue 3005W 1500/150 Price tag HD Link to Hyundai i30 wagon towbar image


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars available on i30 HATCHBACK

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, jet skis and many other single axle trailers. The table above shows the actually rating available for the various i30 models. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars available on i30 WAGON

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. For Hyundai i30 wagon this type of hitch comes with 40mm square receiver socket that the towball mount slides into.They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Gallery: Hyundai i30 Hatchback towbars

Towbar Hyundai i30 hatchback Tongue towbar fitted to Hyundai i30 hatchback

Towbar Hyundai i30 hatchback i30 Hatch, 2012 on

Towbar Hyundai i30 hatchback i30 Hatch, 2017 - 2021
