Towbars Ford Mondeo

Find Ford Mondeo roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

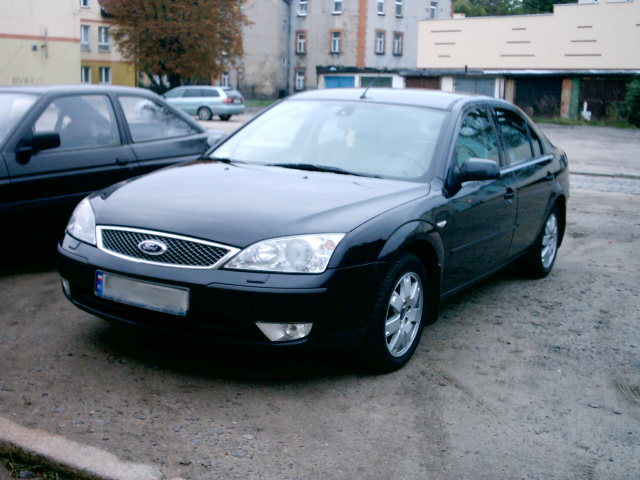

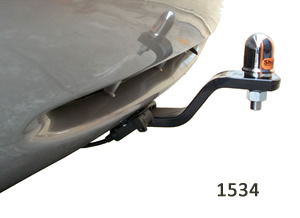

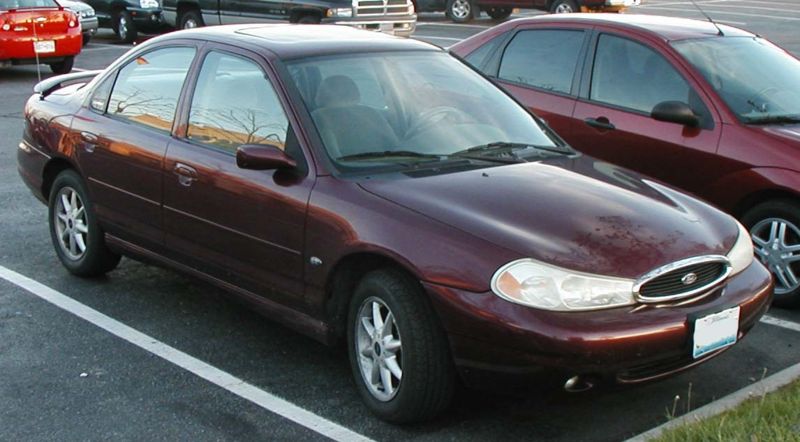

1/1997-09/2007 Mondeo Mk2 l and Mk3 lSedan & Hatch Tiny Hayman Reese logo Tongue 1534 1000/80 pt Link to image of Mondeo towbar

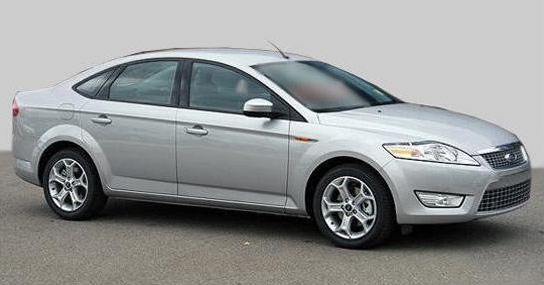

10/2007-01/2015 Mondeo Mk4 MA-MC Sedan & Hatch (incl XR5 and Titanium) l Tiny Hayman Reese logo Tongue 2907W 1600/160 hl

Includes 4826ECU electronic control unit.

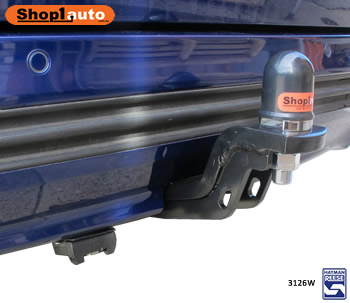

01/2015 on Mondeo (MD) hatchback (Ambiente/Trend/Titanium) Tiny Hayman Reese logo Tongue 3126W 1600/75 hl Link to image of Mondeo towbar Includes #4828 ECU

01/2009-01/2015 Mondeo wagon (petrol) Tiny Hayman Reese logo Tongue 2636W 1200/120 hl Includes 4827ECU electronic control unit

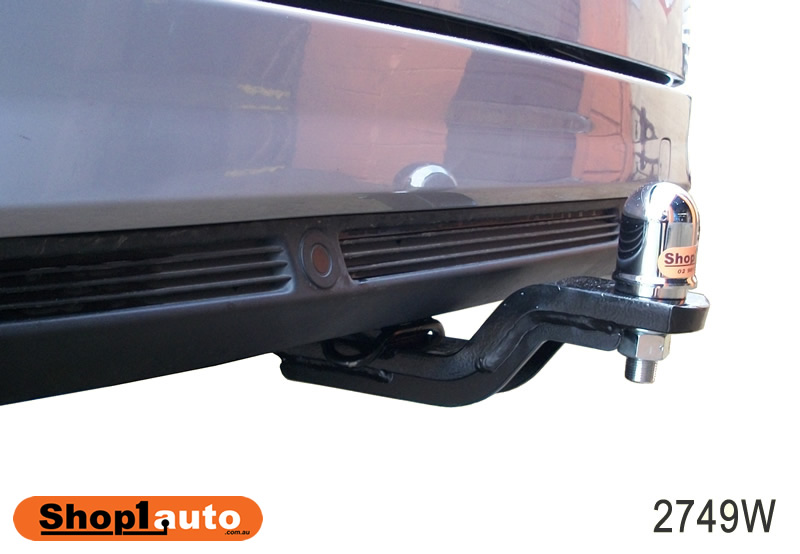

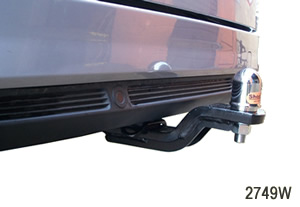

7/2009-01/2015 Mondeo wagon (diesel) Tiny Hayman Reese logo Tongue 2749W 1600/160 hl Includes 4827ECU electronic control unit Link to image of Mondeo towbar
01/2015 on Mondeo wagon (Ambiente/Trend/Titanium) Tiny Hayman Reese logo Tongue 3126W 1600/75 hl Link to image of Mondeo towbarIncludes #4828 or #4831ECU


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.
