Towbar accessories

Find Tow Bar for my car

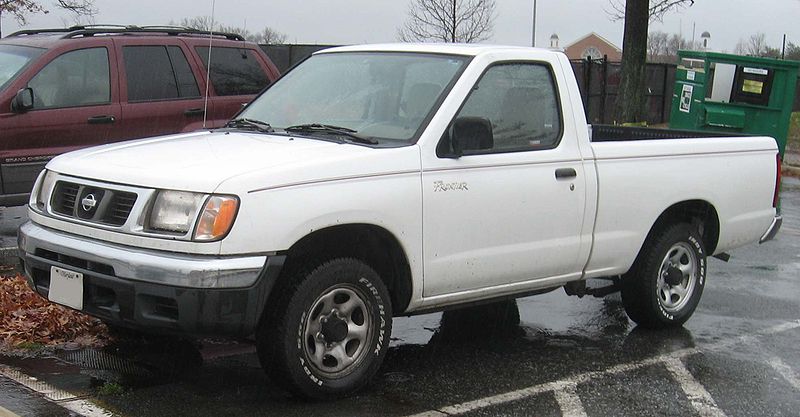

Towbars D22 Nissan Navara

Find Nissan Navara D22 Roof Racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments



NOT SURE IF YOU HAVE A D22 or D40 NAVARA? - Find out here

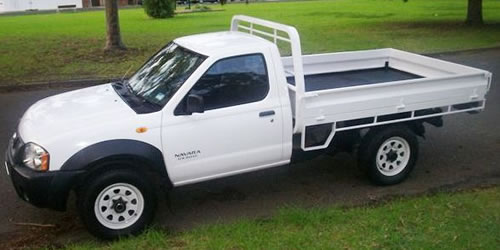

1/1987-2015 Navara D22, Cab-Chassis 2WD/4WD Tiny Hayman Reese logo Tongue 1555 1250/90 pt
Tiny Hayman Reese logo Hitch 1646R 3000/250 Price tag HJ
1/1987-3/2009 Navara D22, 2WD Single cab with tub body, NO bumper Tiny Hayman Reese logo Tongue 1553 1250/90 pt
Tiny Hayman Reese logo Hitch 1646R 3000/250 Price tag HJ
1986-3/2009 Navara D22, 2WD/4WD, Dual cab, tub body, NO bumper Tiny Hayman Reese logo Tongue 1557 1250/90 pt
Tiny Hayman Reese logo Hitch 1282RW 3000/250 Price tag HL 01/2001-on only
1986-2015 Navara D22, 2WD/4WD Dual cab, tub body WITH bumper Tiny Hayman Reese logo Tongue 1555 1250/90 pt 2WD only
Special offer #2588RW. While stocks last: $650
Tiny Hayman Reese logo Hitch 2588RW 2800/280 Price tag HL 01/2001-on only


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar

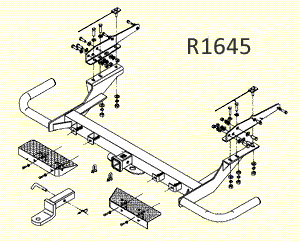

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLPS: Hitch bar, lamp protectors and step.
