Towbars Toyota RAV 4

Toyota RAV4 vehicle image

Find Toyota RAV 4 roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
7/1994-6/2000 Toyota RAV 4 Generation 1 Tiny Hayman Reese logo Tongue 1360 1200/80 hc
Tiny Hayman Reese logo Hitch 1718RL 1200/80 hf

7/2000-01/2006 Toyota RAV 4 Generation 2 Tiny Hayman Reese logo Tongue 1822 1500/80 hc

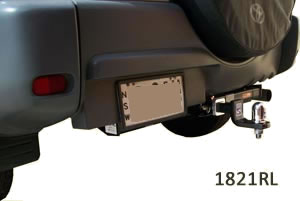

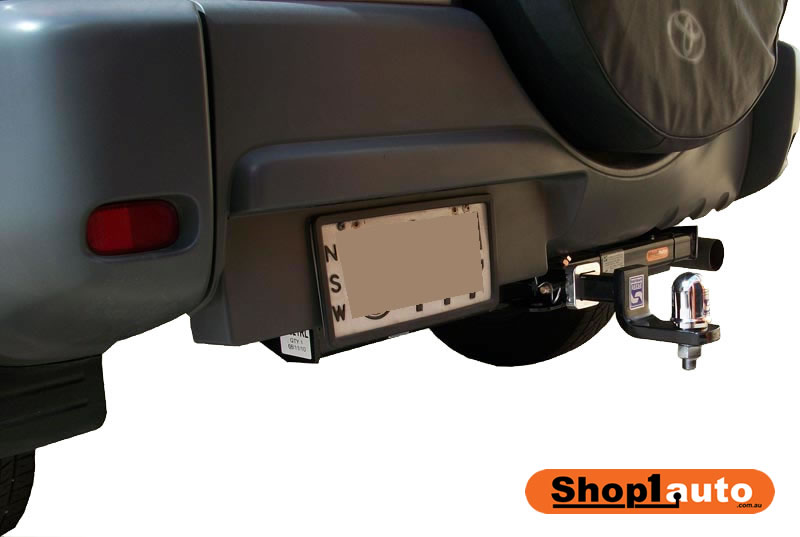

Tiny Hayman Reese logo Hitch 1821RL 1500/150 hh Link to Toyota RAV towbar image
Tiny Hayman Reese logo Hitch 2034R 1500/150 hk

2/2006-01/2013 Toyota RAV 4 Generation 3 Tiny Hayman Reese logo Tongue 2164W 1200/100 hk Includes #4826 ECU control unit to protect vehicle electronics.

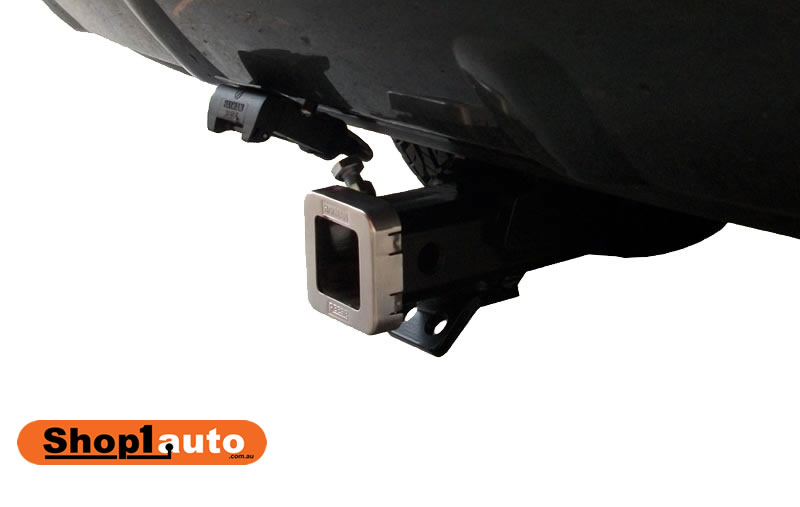

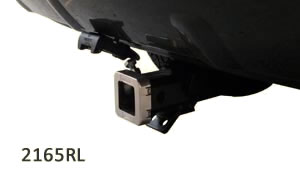

Tiny Hayman Reese logo Hitch 2165RLW 1500/120 Price tag HJ Link to Toyota RAV towbar image Includes #4826 ECU control unit.

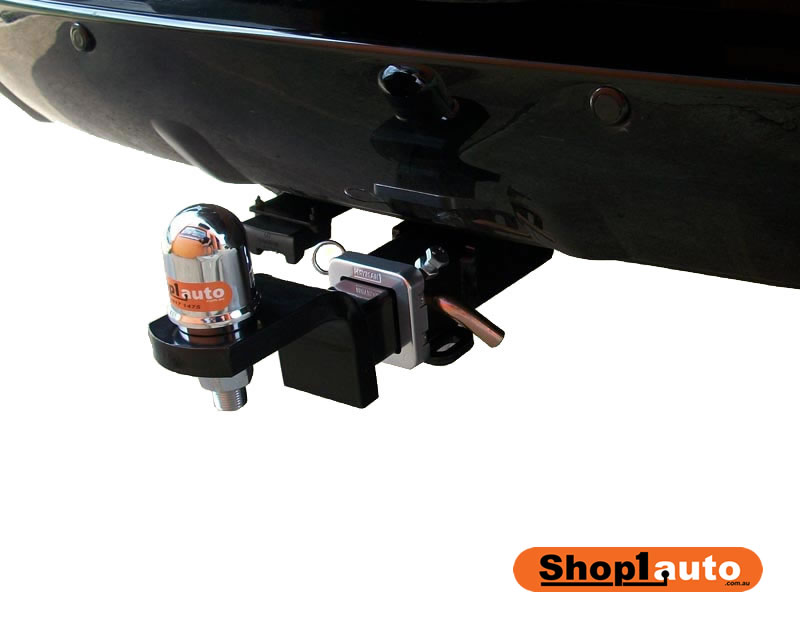

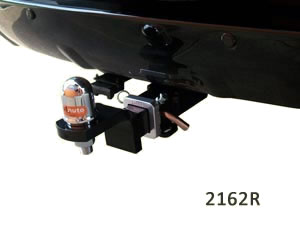

Tiny Hayman Reese logo Hitch 2162RW 1900/150 hr Link to Toyota RAV towbar image Includes #4826 ECU control unit.

02/2013-04/2019 Toyota RAV4 Generation 4 Tiny Hayman Reese logo Tongue 3009W 1200/120 hk Includes #4826 ECU electronic protection

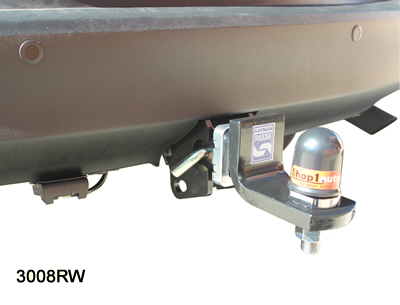

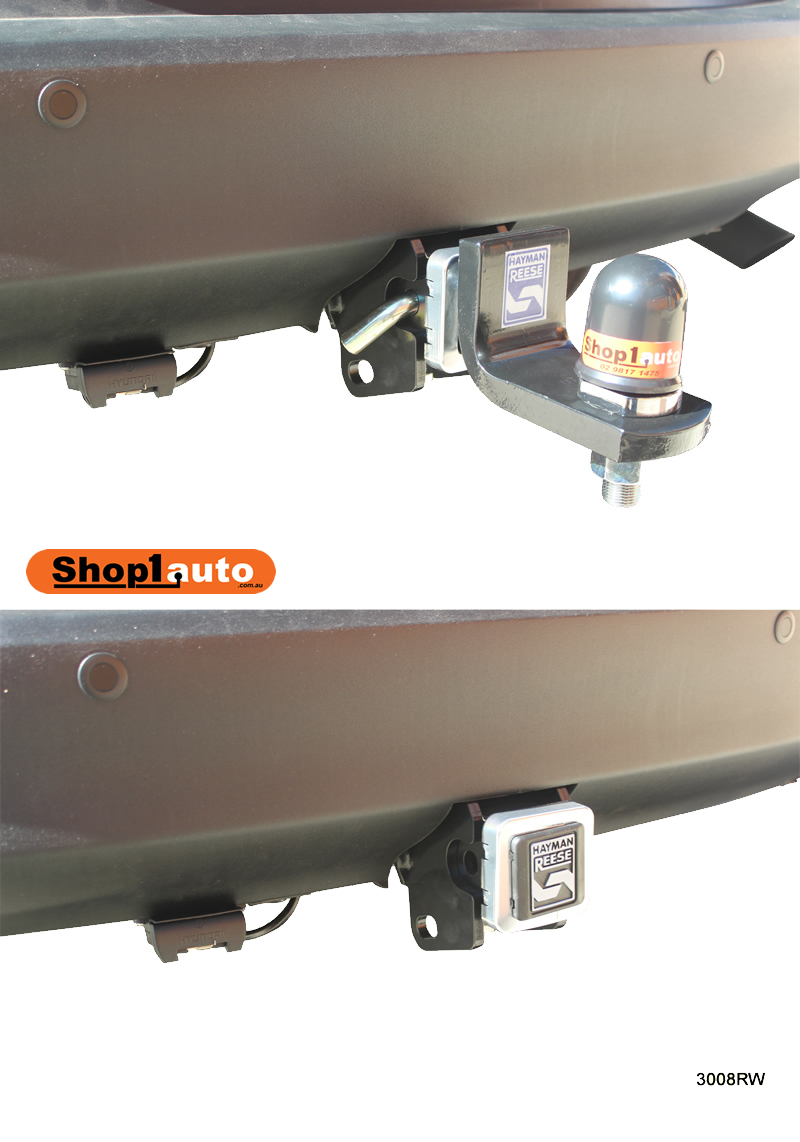

Tiny Hayman Reese logo Hitch 3008RW 1500/150 hs Link to Toyota RAV towbar image Includes #4826 ECU electronic protection

05/2019 on Important note: towbar ratings are max for the bar. Refer to owners manual as ratings for individual models vary: eg: 2WD petrol max: 800kg, 2WD hybrid = 480kg!

Toyota RAV4 Generation 5 (Fits hybrid)

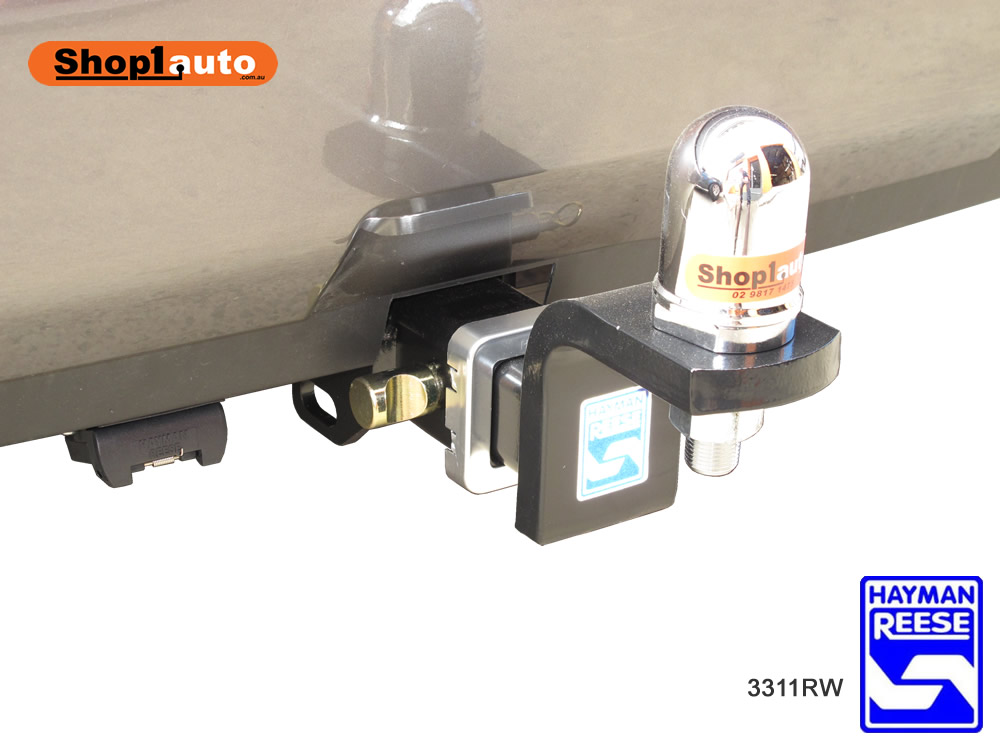

Tiny Hayman Reese logo Hitch 3311RW 1500/150 hs Link to Toyota RAV towbar image Includes #4826 ECU electronic protection

GX/GXL/Cruiser 2WD Only

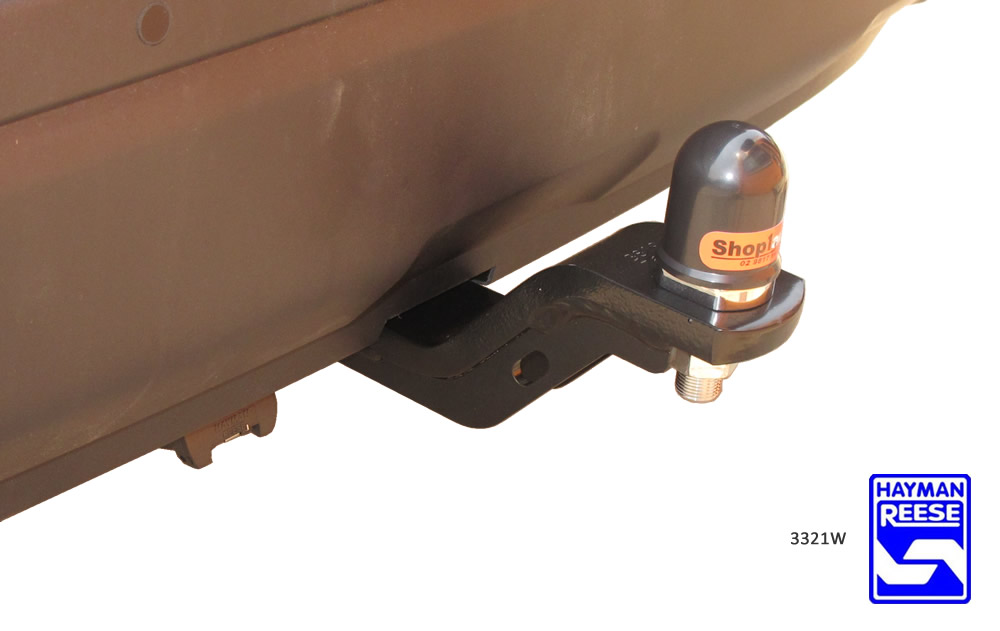

Tiny Hayman Reese logo Tongue 3321W 800/80 hs Link to Toyota RAV towbar image Includes #4826 ECU electronic protection


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.
