Towbars Mercedes Sprinter

Find Mercedes Sprinter Roof Racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
2/1998-10/2006 Sprinter Cab Chassis (single rear wheels) Tiny Hayman Reese logo Hitch 1613R 2000/120 Price tag HM
10/2006 on Sprinter Cab Chassis 3 & 5 tonne (not dual cab) Tiny Hayman Reese logo Hitch 2380R 2000/200 Price tag HS Includes ECU unit

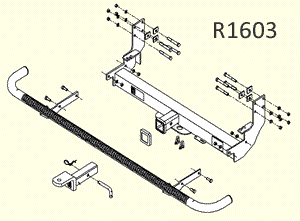

1/1998-10/2006 Sprinter van 308D SWB/LWB & 412D LWB Tiny Hayman Reese logo HLP 1603R 2000/120 Price tag HAB

Includes protection step and ECU

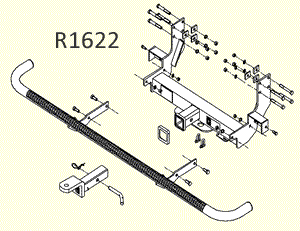

4/1998-10/2006 Sprinter Van 412D with dual rear wheels Tiny Hayman Reese logo HLP 1622R 2000/120 Price tag HAB Includes protection step and ECU. Made-to-order

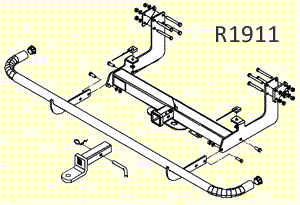

5/2002-10/2006 Sprinter 208 Tiny Hayman Reese logo HLP 1911R 2000/120 Price tag HAB Includes protection step and ECU. Made-to-order

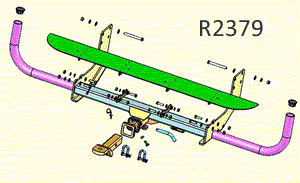

10/2006 on Sprinter Panel van LWB 3&5 tonne Tiny Hayman Reese logo HLPS 2379R 2000/120 Price tag HAB Includes protection step and ECU
06/2009-06/2018 Sprinter SWB van (Not 4x4) Tiny Hayman Reese logo Hitch 2761RW 2000/120 Price tag HAB Includes #4826 ECU fits under existing bumper step


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar Rear protection bar

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLP: Hitch bar with lamp protectors

HLPS: Hitch bar, lamp protectors and step.

TLP: Standard bar with lamp protectors.

TLPS: Standard bar with lamp protectors and step.
