Towbars Mazda BT50 Ute

Mazda BT50 vehicle picMazda BT50 vehicle picMazda BT50 vehicle pic

Find Mazda BT50 roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

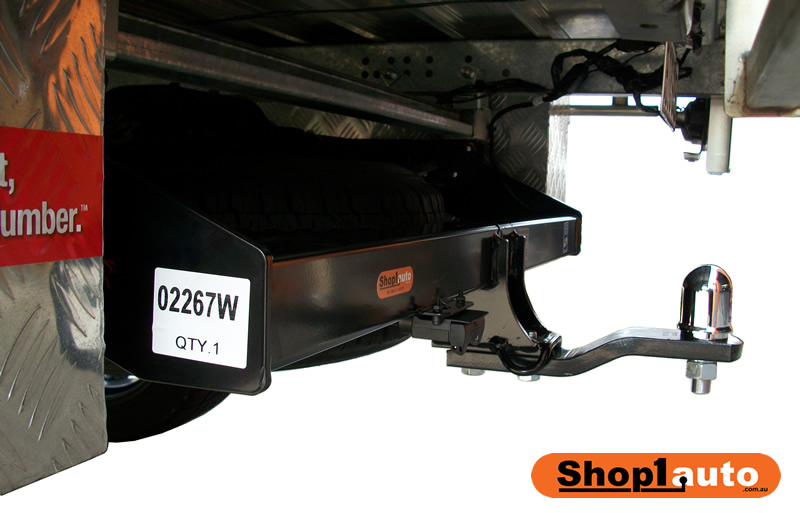

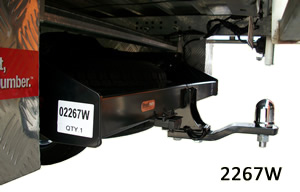

2/2007-09/2011 Mazda BT50 2WD Cab Chassis Tiny Hayman Reese logo Tongue 2267W 1200/120 Price tag HC Link to Mazd BT50 towbar image

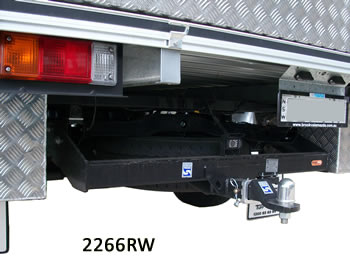

Tiny Hayman Reese logo Hitch 2266RW 3000/300 Price tag HJ Link to Mazd BT50 towbar image

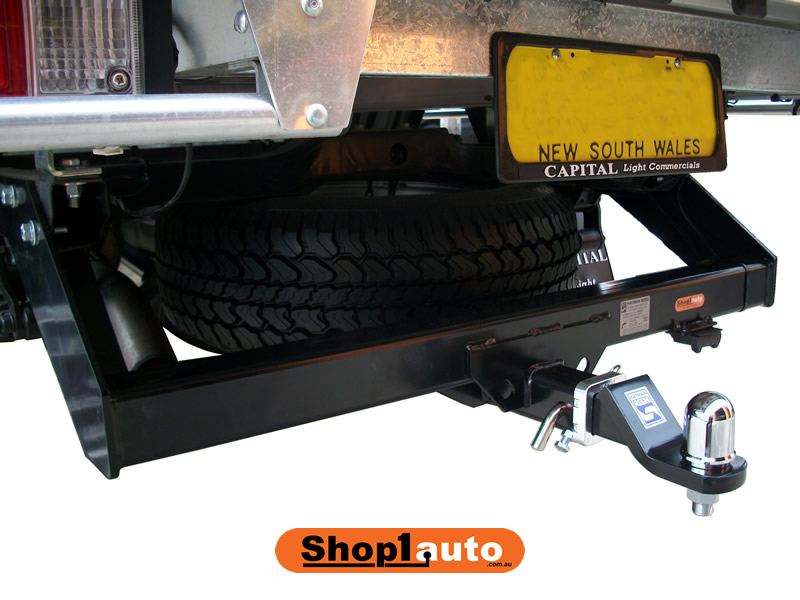

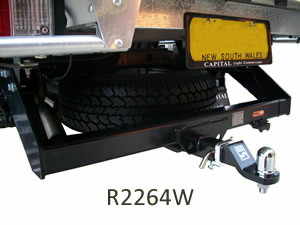

2/2007-10/2011 Mazda BT50 4WD Cab Chassis Tiny Hayman Reese logo Hitch 2264RW 3000/300 Price tag HJ Link to Mazd BT50 towbar image

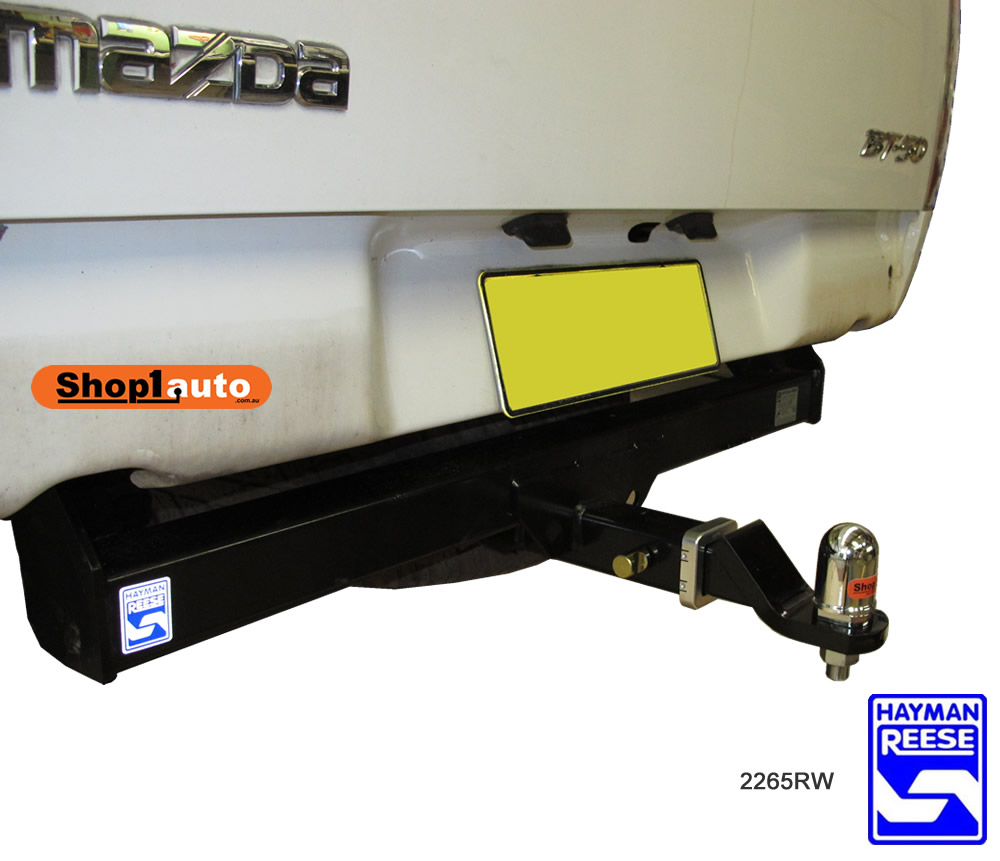

2/2007-10/2011 Mazda BT50 Tub body WITHOUT rear bumper Tiny Hayman Reese logo Hitch 2265RW 3000/300 Price tag hk Link to Mazd BT50 towbar image

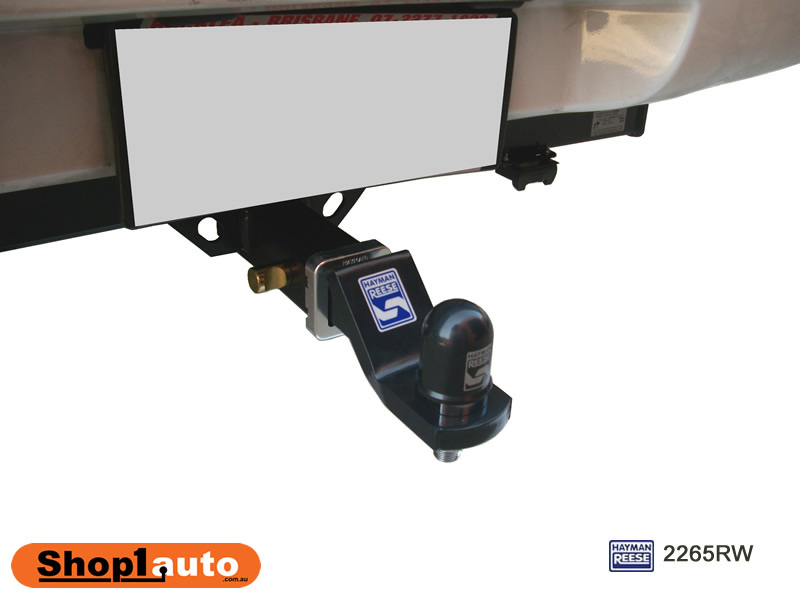

2/2007-10/2011 Mazda BT50 Tub body WITH rear bumper Tiny Hayman Reese logo Hitch 2265RW 3000/300 Price tag HJ

Link to Mazd BT50 towbar image Includes additional bumper fit kit #8313


11/2011-06/2015

Mazda BT50 (PX) Tub Body

Tiny Hayman Reese logo Hitch 2848RW 3500/350 Price tag HJ Link to Mazda BT50 towbar image

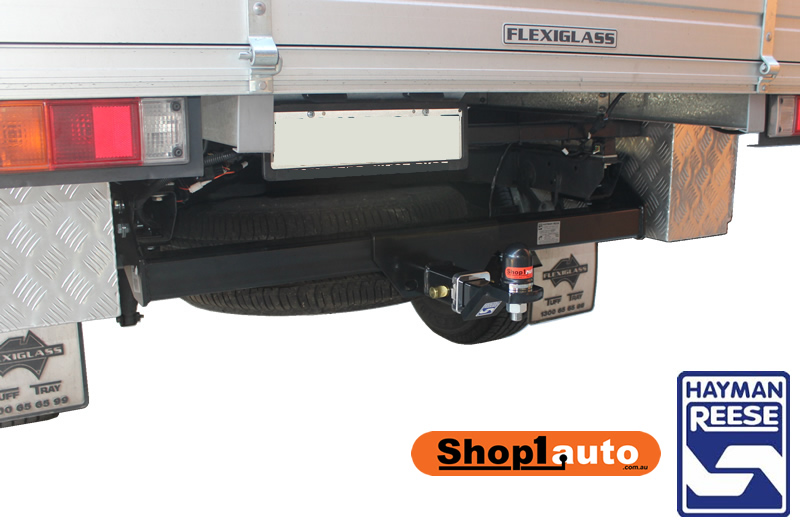

11/2011-08/2015 Mazda BT50 (PX) Cab chassis Tiny Hayman Reese logo Hitch 2866RW 3500/350 HD Link to Mazda BT50 towbar image
3230RW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

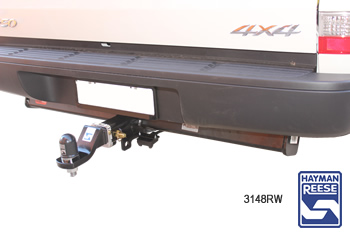

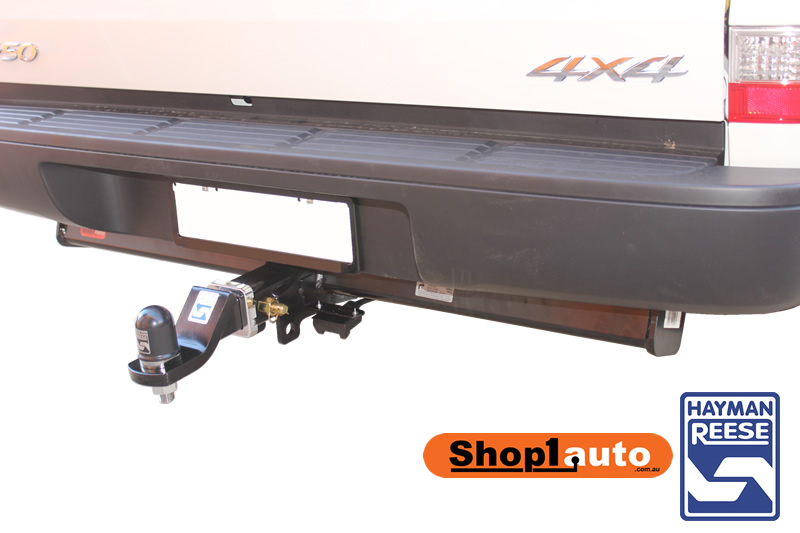

08/2015-07/2020 Mazda BT50, 4door Tub body Tiny Hayman Reese logo Hitch 3148RW 3500/35 Price tag HAA Link to Mazda BT50 towbar image includes #4835 ECU
3335XW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

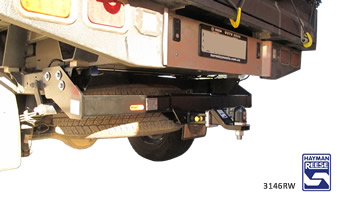

08/2015-07/2020 Mazda BT50 Cab chassis Tiny Hayman Reese logo Hitch 3146RW 3500/35 Price tag HAA Link to Mazda BT50 towbar image includes #4835 ECU
3230RW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Recovery rating 8000kg

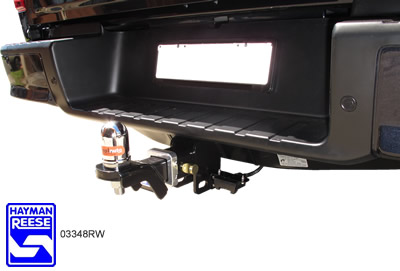

07/2020-onward Mazda BT50 Tub body (and cab-chassis that retain the bumper/step) Tiny Hayman Reese logo Hitch 3348RW 3500/35 Price tag HAA Link to Ford Ranger towbar image Includes #4835 ECU, #4943 tail.
3364XW 3500/350 Price tag HJ

Link to Ford Ranger towbar image Includes #4835 ECU, #4943 tail.

07/2020-onward Mazda BT50 Cab Chassis (with bumper discarded during fit) Tiny Hayman Reese logo Hitch 3420RW 3500/35 Price tag HJ Includes #4835 ECU, #4943 tail #08409 sensor brackets
3365XW 3500/350 Price tag HJ

Includes #4835 ECU, #4943 tail #08409 sensor relocation brackets



Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. These bars are available as light duty bars with a 40mm square receiver hole and heavier ratings with a 50mm square hole. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar Rear protection bar

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLP: Hitch bar with lamp protectors

HLPS: Hitch bar, lamp protectors and step.

TLP: Standard bar with lamp protectors.

TLPS: Standard bar with lamp protectors and step.

X-Bar towbars

Hayman Reese X-bar

The Hayman Reese X-BAR for the Mazda BT50 is built tough for off-road action. Forged steel recovery points and heavy duty side arms give extremely strong anchor points for pulling a vehicle out of the bog. Improved depature angles and protection for electrical sockets makes the X-BAR the best choice for off-road use.
