Towbar accessories

Find Tow Bar for my car



Towbars Ford Kuga

Ford Kuga vehicle image Ford Kuga Series 2 vehicle image

Find Ford Kuga roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments

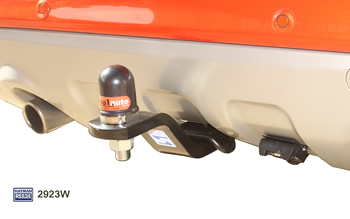

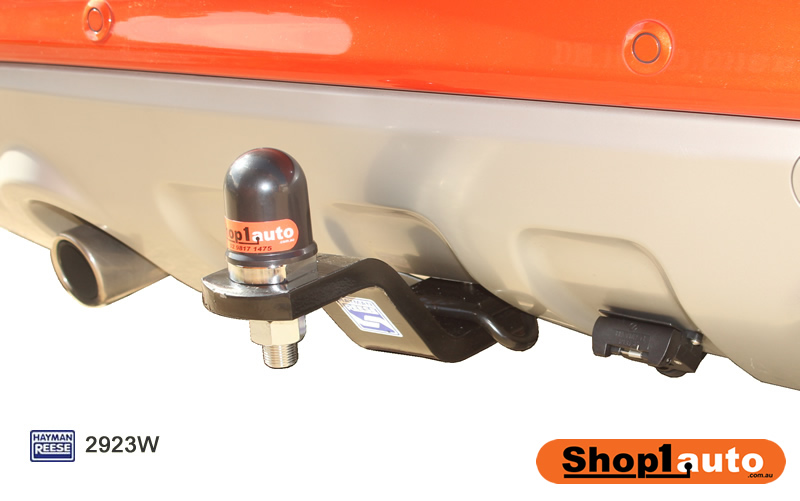

03/2012-03/2013 Ford Kuga SUV Tiny Hayman Reese logo Tongue 2923W 750/75 r

Includes #4826 ECU protection link to Kuga towbar image

Low rating dictated by Ford Aus.

04/2013 on

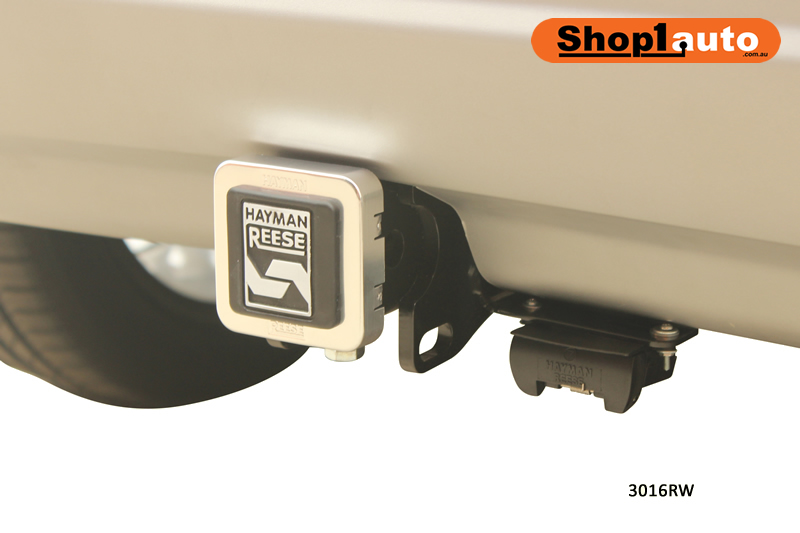

Ford Kuga SUV Series 2 Tiny Hayman Reese logo Hitch 3016RW 1500/150 r Includes #4826 ECU protection. link to Kuga towbar image
For cars with foot operated tail gate +$35. This feature will still work but requires extra work to move the sensor.


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner (generic images)

For the Series 1 Ford Kuga we offer a standard towbar also known as a goose neck towbar. This style of bar uses a tongue to mount the tow ball. The tongue can be easily removed by undoing 2 bolts with a large shifter or a tow bar spanner. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers within the rating of the bar. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch (generic images)

For the Series 2 Ford Kuga we offer a hitch receiver tow bar. This incorporates a removable square hitch that is fitted with a quick release pin. The Kuga Series 2 towbar has a 50mm square receiver socket which increases the range of bike carriers available to include hitch mount carriers or bike carriers can also mount directly to the tow ball when the ball mount is inserted.
