Towbars Mercedes C-Class

C-Class W202 C-Class_W203 Mercedes C-Class W204

Find Mercedes C-Class Roof Racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
10/1996-7/2001 C-Class, sedan and coupe (W202) Tiny Hayman Reese logo Tongue 1344 1250/90 Price tag HS Link to Mercedes C-CLass towbar image Includes #4916 ECU protection unit
07/2001-6/2007 C-Class sedan (W203) does not fit coupe Tiny Hayman Reese logo Tongue 1865 1500/150 Price tag HU Link to Mercedes C-CLass towbar image Includes #4916 ECU protection unit
7/2007-04/2011 C-Class sedan (W204) Tiny Hayman Reese logo Tongue 2534 1250/75 Price HAC

Link to Mercedes C-Class towbar image Link to Mercedes C_Class tow bar imageIncludes "Smart" ECU protection unit.

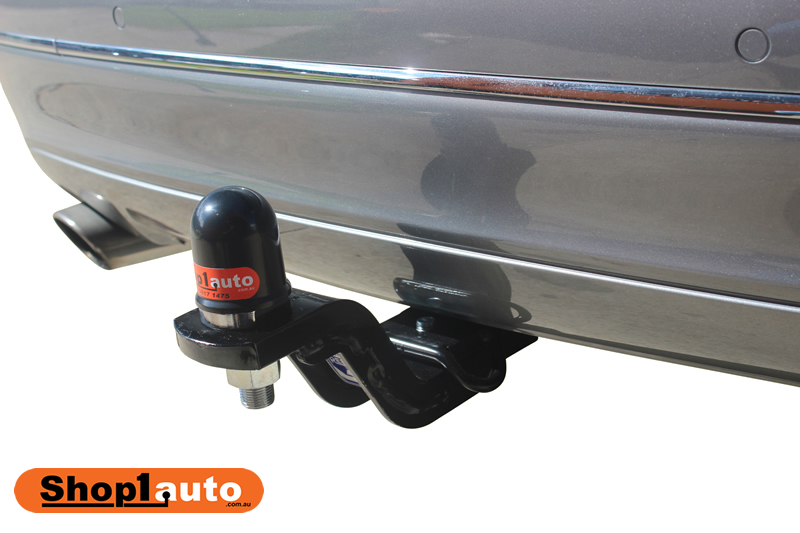

5/2011-07/2014 C-Class sedan (W204 face lift) Tiny Hayman Reese logo Tongue 2964W

1250/125

 Price tag HAA Includes #4832ECU Link to Mercedes C-CLass towbar image
08/2014 on C-Class sedan (W205) C200/C250 Diesel only Tiny Hayman Reese logo Hitch 3122RW 1800/75 Price HAC Includes #4826ECU protection

10/1996-7/2001 C-Class wagon (W202) Tiny Hayman Reese logo Tongue 1344 1250/90 Price tag HU Includes #4916 ECU protection unit
07/2001-6/2007 C-Class wagon (W203) Tiny Hayman Reese logo Tongue 1865 1500/150 Price tag HU Link to Mercedes C-CLass towbar image Includes #4916 ECU protection unit
07/2007-12/2009 C-Class wagon (W204) Sorry no bar available
01/2010-07/2014

C-Class Wagon (W204 face lift)

 Tiny Hayman Reese logo Hitch 2736RW 1800/180 Price HAC Link to Mercedes C-CLass towbar image Include #4832 ECU protection unit


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Hayman Reese Class 2 towbar

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

Hayman Reese Class 4 towbar hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. The hitch receiver towbars available for the X5 come with a 50mm square receiver socket. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities.

The hitch style towbar also allows quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Gallery (W202) C-Class Mercedes towbar

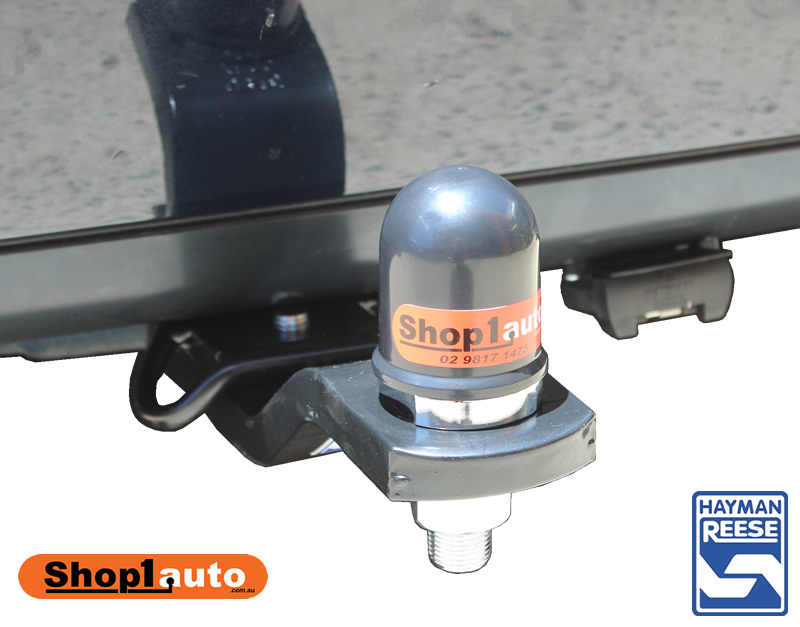

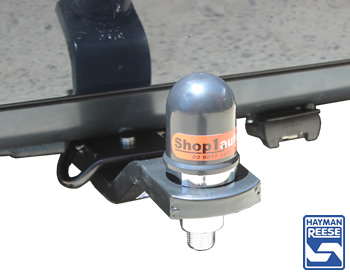

Towbar Mercedes C-Class Towbar 1344 fitted to Mercedes W202 C-Class



Gallery (W203) C-Class Mercedes towbar

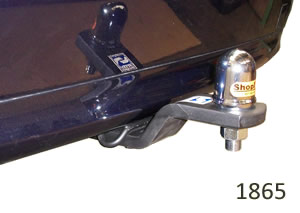

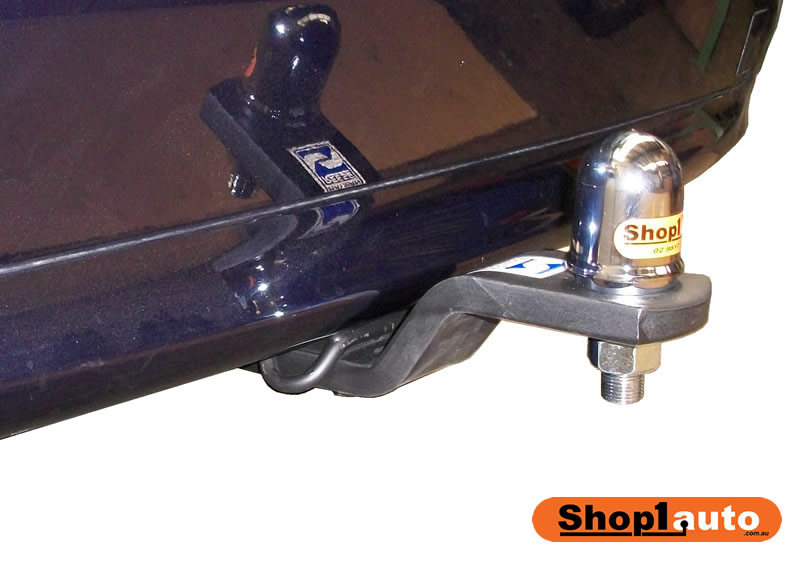

Towbar Mercedes C-Class Towbar 1865 fitted to Mercedes W203 C-Class

Gallery (W204) C-Class Mercedes towbar

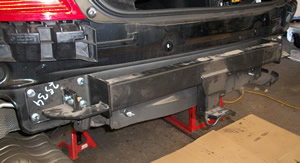

Towbar being fitted to W204 C-Class Mercedes 2534 towbar being installed on C-Class Mercedes

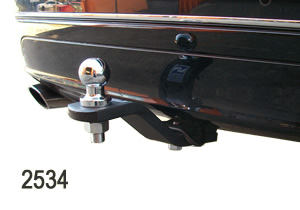

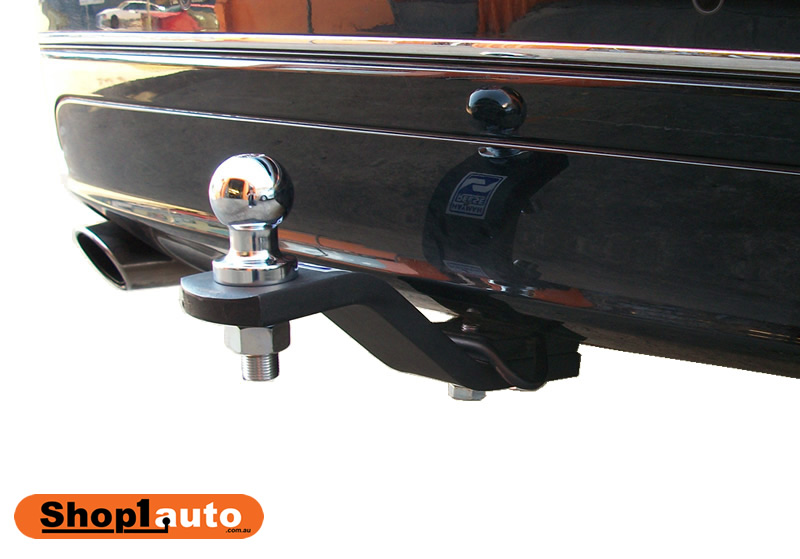

Mercedes C-Class towbar W204 C-CLass Mercedes towbar

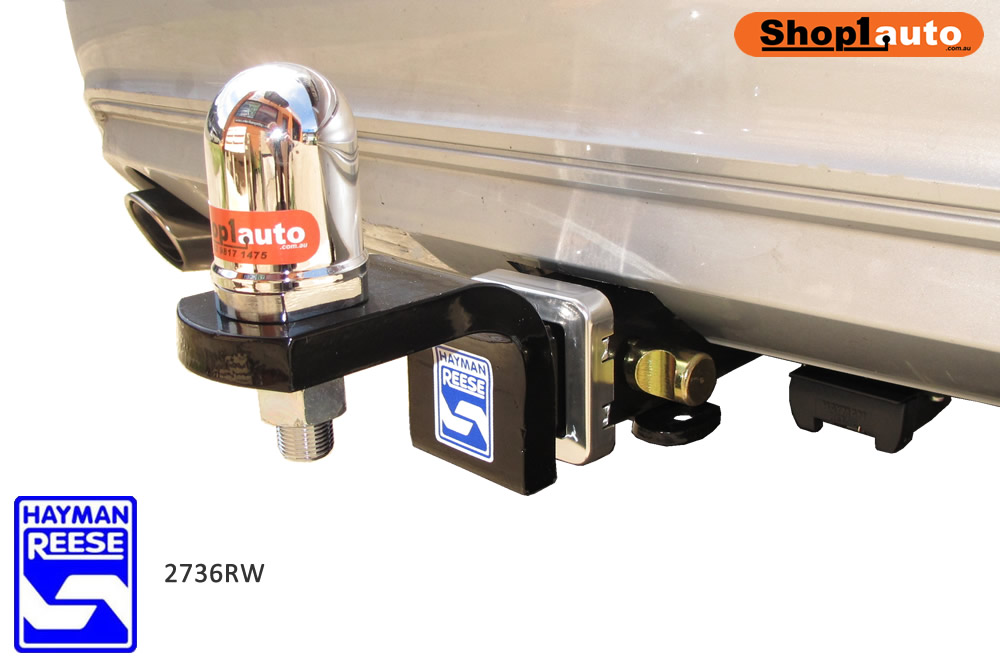

Mercedes C-Class towbar C-CLass Mercedes wagon towbar 2736RW
