Towbars Ford Courier

Find Ford Courier roof racks here
Date Vehicle description Make Type Part # Rating Fitted $ Comments
6/1985-12/2006 Courier 2WD, tub body without rear bumper (Not LPG model) Tiny Hayman Reese logo

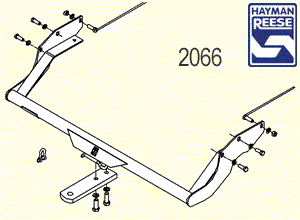

Tongue

2066

1200/100 pt

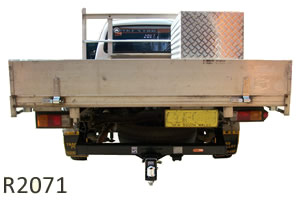

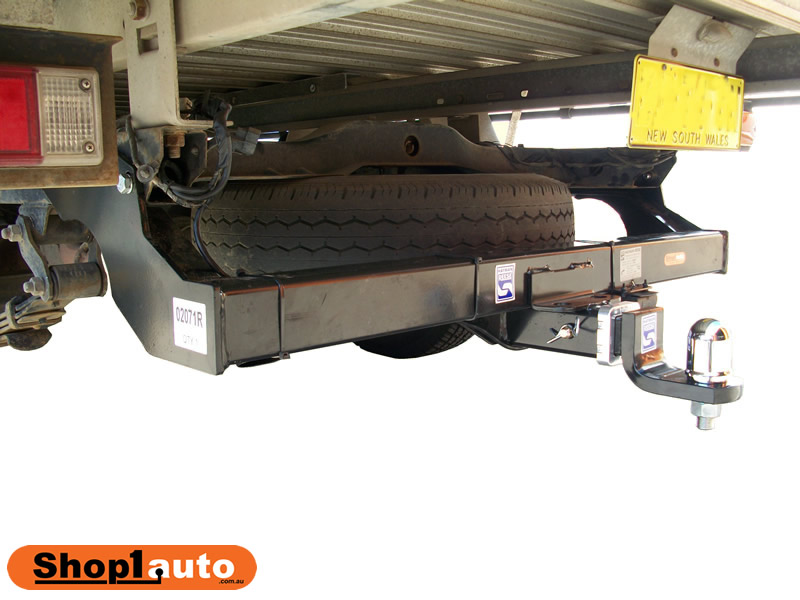

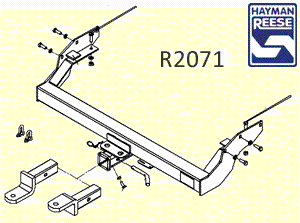

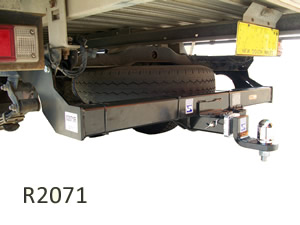

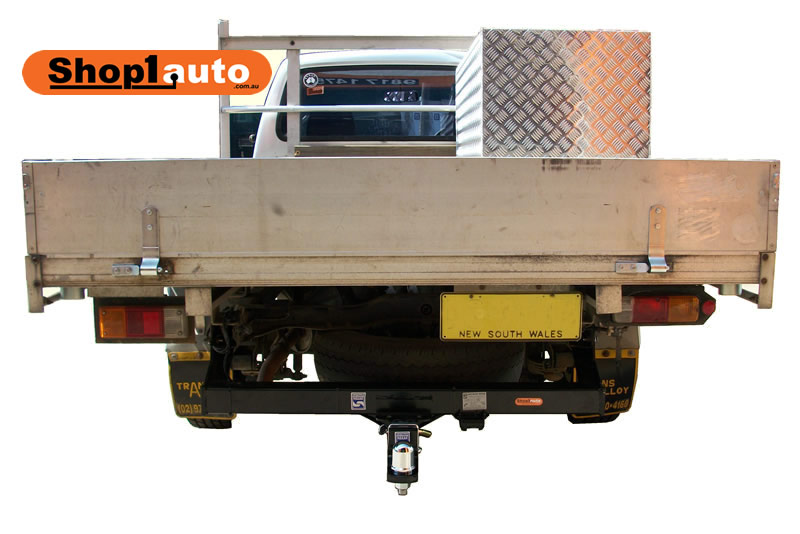

Tiny Hayman Reese logo Hitch

2071R

1800/180 pt

Up to 1999 rating 1500kg

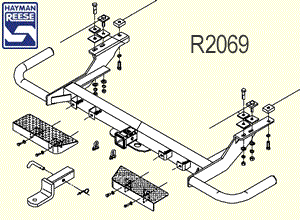

Tiny Hayman Reese logo HLPS 2069R 1800/180 Price tag HAA Includes protector bars and alloy step Link to Ford COurier tow bar image
6/1985-12/2006 Courier 4WD, tub body without rear bumper (Not LPG model) Tiny Hayman Reese logo Hitch 2071R 1800/180 pt

Up to 1999 rating 1500kg

Tiny Hayman Reese logo TLP 2067 1200/100 pt Link to Ford COurier tow bar image
Tiny Hayman Reese logo HLPS 2069R 1800/180 Price tag HAA Up to 1999 rating 1500kg Link to Ford COurier tow bar image

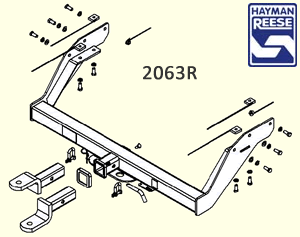

6/1985-12/2006 Courier (LPG MODEL) Cab Chassis & tub body WITHOUT bumper Tiny Hayman Reese logo Hitch 2063R 1800/180 Price tag HL
6/1985-12/2006 Courier Cab Chassis (Not LPG models) Tiny Hayman Reese logo Tongue 2066 1200/100 pt
Tiny Hayman Reese logo Hitch 2071R 1800/180 pt

Up to 1999 rating 1500kg Link to Ford COurier tow bar image Link to Ford COurier tow bar image

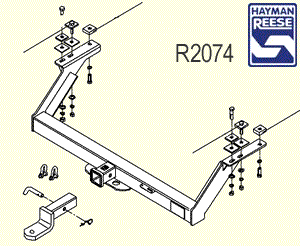

6/1985-12/2006 Courier tub body WITH rear bumper (Not LPG model) 2&4WD Tiny Hayman Reese logo Hitch 2074R 1800/180 pt Up to 1999 rating 1500kg


Prices include fitting, trailer lighting socket, chrome ball and cap.

Rating = max trailer/max down load on ball

How to organise your tow bar fitting.

Tow bar Types

Standard (Tongue) towbars

Standard tow bar gooseneck Tow bar lug spanner

The standard towbar uses a tongue to mount the tow ball and are also known as gooseneck towbars. The tongue can be removed by undoing 2 bolts. The standard bar is ideal for towing lighter loads like small box trailers, tinnies, jet skis and many other single axle trailers. Ratings range from 600kg to 1600kg depending on the vehicle. There is also a large range of bike carriers that can be used with a gooseneck tow bar, see our bike rack page for details.

Hitch Receiver towbars

SUbaru Forester towbar Subaru Forester tow hitch

The hitch receiver tow bar incorporates a removable square hitch that is fitted with a quick release pin. The tow bars for the Ford Courier are available with a 50mm square receiver socket. Heavy duty hitch receivers are ideal for towing caravans, horse floats, car trailers and larger boats depending on the vehicles towing capabilities. They also allow quick removal of the tow hitch when not in use to save those shins. The square hitch tow bar can also provide a mounting point for a wide range of bike carriers. Please see our bike rack pages for details.

Protector bar towbars

Protector bar towbar Rear protection bar

On some vehicles it is possible to install a tongue type or hitch receiver that also incorporates protector bars and on some vehicles a step is also incorporated.

HLP: Hitch bar with lamp protectors

HLPS: Hitch bar, lamp protectors and step.

TLP: Standard bar with lamp protectors.

TLPS: Standard bar with lamp protectors and step.
