Roof Racks Mazda 3 Hatchback

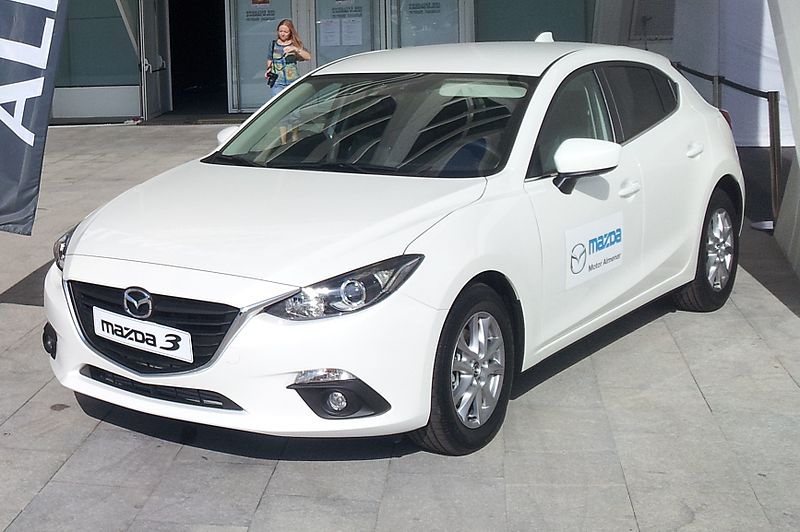

Mazda 3 vehicle image

There is lots of choice for roof racks to suit the popular Mazda 3. All Mazda 3s up to 2015 conveniently come with a simple mounting screw hidden beneath 4 small covers in the roof. The mounting point is a 6mm threaded hole that roof racks can simply be screw in place. The options are generally split into 2 styles. Roof racks which have a cross bar that ends flush with the end support and those that have a cross bar that go beyond the end support. The flush ended racks are designed for sporty locks and aesthetics while through bars are more functional. They allow for wider loads and some customers like to use the overhanging part as a fixed point for lashing down the load.

Many of the roof racks for a Mazda 3 are held in stock but a few varieties may need to be ordered. This is often overnight but generally a couple of days is all that is needed to get bars in.

Find Mazda 3 Tow Bars here
Date Vehicle description Make

click image for more info

Part # Rating KG Price Install Comments
1/2004-3/2009 Mazda 3 hatchback 5dr prorack small logo Mini pic Prorack Whispbar anchor point roof rack S5-K340 75 pt faa

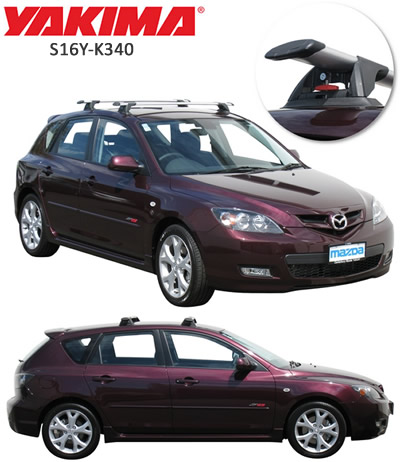

mini pic Prorack Whispbar thro roof rack S16-K340 75 pt faa
Thule logo Thule Rapid fit roof rack small pic 753-7112-3069 75 pt fb .
WB-Edge small 9592-3069 75 TI fb
4/2009-01/2014 Mazda 3 hatchback 5dr prorack small logo mini pic prorack p-bar P16-K451 75 pt faa

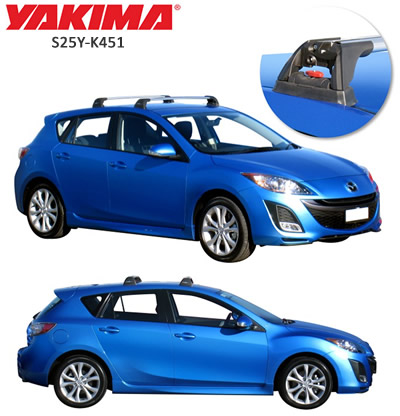

prorack small logo Mini pic Prorack Whispbar anchor point roof rack S25-K451 75 pt faa

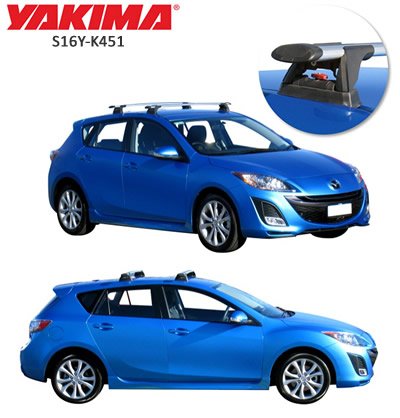

mini pic Prorack Whispbar thro roof rack S16-K451 75 pt faa
Rhino racks logo Rhino 2500aero roof rack RLKVA-2xVA118-DK289 75 pt faa Link to Mazda 3 roof rack image
Thule logo Thule Rapid fit roof rack small pic 753-7112-3069 75 pt fb .
WB-Edge small 9592-3069 75 TI fb
2/2014-02/2019 Mazda 3 hatchback 5dr . Whispbar racks attach to mounting points concealed under trim strip.

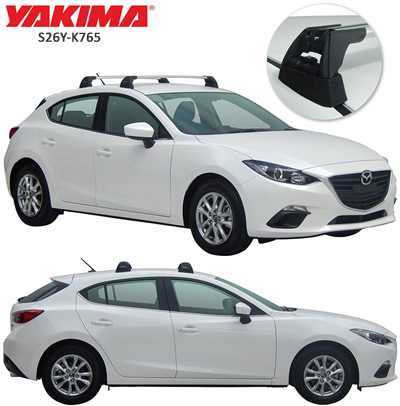

prorack small logo Mini pic Prorack Whispbar anchor point roof rack S26-K765 75 pt faa

.

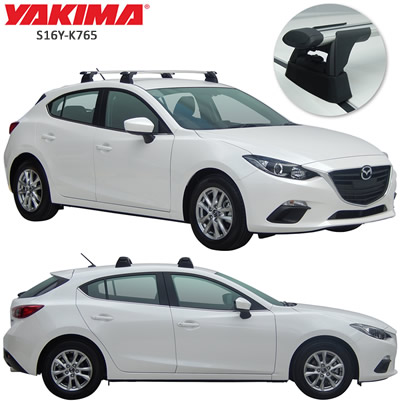

mini pic Prorack Whispbar thro roof rack S16-K765 75 pt faa

.

Rhino racks logo Rhino 2500 euro roof rack DS126B-DK406 75 pt faa
Rhino 2500SPortz roof rack RV0622B 75 pt faa
Rhino 2500aero roof rack RLKVA-2xVA126-DK406 75 pt faa
Thule logo Thuel GL754 roof rack small pic 7105-7114-5002 75 pt fb .

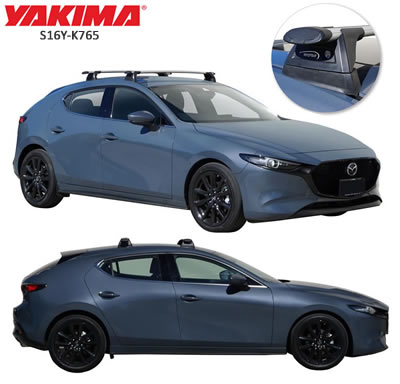

5/2019 onward Mazda 3 hatchback 5dr Whispbar racks attach to mounting points concealed under trim strip.

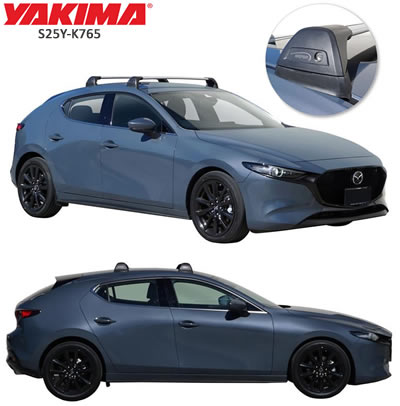

prorack small logo Mini pic Prorack Whispbar anchor point roof rack S25-K765 75 pt faa

.

mini pic Prorack Whispbar thro roof rack S16-K765 75 pt faa

.



Fitting tips for Mazda 3 Roof Racks

Before fitting the racks give the area around the mountings holes a wash down so that the area has no traces of grit that may cause the roof rack to scratch.

Roof racks for Mazda 3 (up until 2014) simply screw into the mounting holes provided in the roof. The mounting is a 6mm threaded hole. Before attempting to fit the roof racks we recommend giving each thread a squirt of WD40 or similar and run one of the screws provided down each hole to ensure the thread is clean and the rack can be attached without binding. Stripping one of these threads would be a real headache to fix up so it is worth the couple of minutes to check they are all good before you start.

Gallery Mazda 3 Roof racks

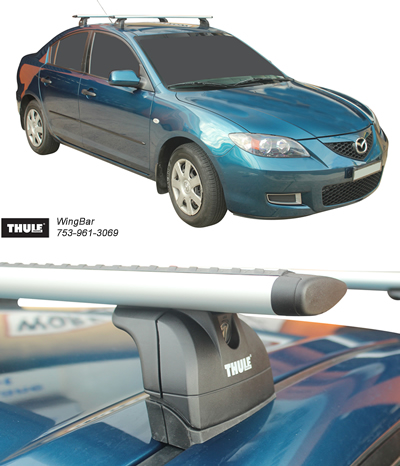

Thule Mazda 3 roof racks Thule WingBar 753-7112-3069

Thule Mazda 3 roof racks Thule WingBar 7105-7114-5002
