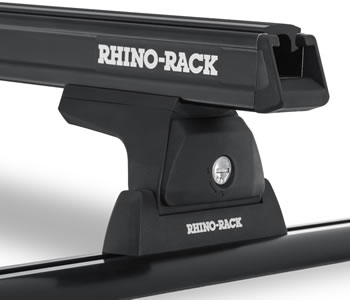

Rhino Rack Roof Rack - HD Track Mount RLT600
The Rhino Rack Heavy Duty track mount is a heavy roof rack with quick release legs. The system uses 2 aluminium channels that are permanently attached to the roof that the cross bars fix to. The cross bars are removable with a clever quick release and tool free mechanism. Theycan be positioned anywhere along the track for maximum flexibility. The tracks also have the benefit of spreading the load along the length of the roof making this a very strong option.
The tracks are attached using non-corroding, blind rivets after first applying zinc paint and sealant to the holes drilled.
The cross bar incorporates a T-channel that can be used to fit accessories that have a T-bolt attachment.
Specifications
 |
|
|---|---|
| Cross bar colour | Silver or Black |
| Ease of fitting first time | First installation takes about 2 hours and a professional install is advised. |
| Ease of fit/removal | The cross bars are secured via a small mounting block fixed to the track with screws. The crossbars can then be rapidly removed from the mounting blocks using a tool free quick release mechanism. |
| Security | Key locking |
| Transferable | These racks are a permanent system. Although the cross bars could be reused as part of track system on another vehicle. |
| Warranty | Lifetime manufacturer's warranty |
| Comments | Can also be used on fiberglass canopies and hard tops with appropriate fastenings |
